Turbidity Curtain Barrier - Type 1 DOT - 6' x 50'

$752.87
SKU TUR-6X50-1-DOT

Turbidity Curtain Barrier - Type 1 DOT - 6' x 50'

Model: TC-6X50-D
Brand: Tough Guy / AER-FLO

Size: 6' x 50'
Product Specifications: Download Printable Spec Sheet >

Lead Time: Please expect a 5-7 business day lead time prior to shipping on this product.

FREE SHIPPING

VIEW OUR FULL SELECTION OF TURBIDITY CURTAINS >

DO YOU NEED A WRITTEN QUOTE? SUBMIT A QUOTE REQUEST >


FREE SHIPPING

 Require a written quote?
Request Online >

 Questions? Call (800) 748-5647

PRODUCT INFO:

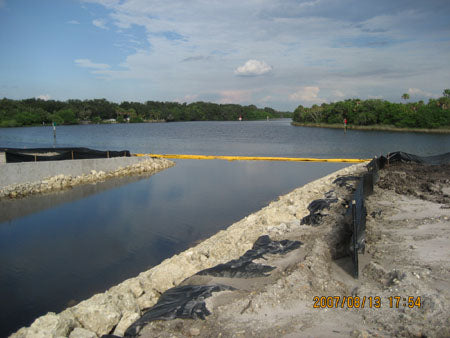

  • Restricts the flow of sediment-laden stormwater runoff from a construction site, to keep it contained in a limited area, and allow the sediment to settle out before being carried into adjacent or joining watercourses.
  • Type 1.DOT is recommended for construction sites located in protected areas that are exposed only to light winds and to current velocities of less than one foot per second. This type of site may include ponds, shallow lakes, small streams and marshes
  • Consist of a top flotation boom, an impervious fabric curtain extending downward under water, and a heavy galvanized steel chain sealed into a hem along the entire bottom of the curtain to provide ballast to keep the curtain vertical in the water.
  • Anchorage consisting of stakes or concrete blocks may be required to maintain the barrier in its required position. Barrier sections are connected by rope lacing or nylon ties which must be furnished by others.

RESOURCES:

  • Turbidity Curtain Guide
  • Download Printable Spec Sheet

Tough Guy® Floating Turbidity Barrier Type 1.DOT

Specifications (ST: 10/08)

Fabric - 18 oz. nominal laminated vinyl/polyester having the following characteristics:

Construction - vinyl laminate on 9X9 1000 x 1300 denier polyester scrim Weight – 18.5 oz. per sq. yd. (434 gr./sq. m.)

Adhesion – 24 x 20 lb./2”

Grab Tensile – 410 x 410 lb./in. (430 x 421 daN/5cm.)

Tongue Tear – 100 x 100 lb. (95 x 95 daN)

Hydrostatic - 600 psi (4167 kPa) Cold resistance to crack: -40° F/C

All seams heat sealed

5/8 inch diameter poly rope reinforced vertical edges

#4 brass grommets

1/4 in. galvanized chain ballast

EPS flotation, 6 in. x 6 in., 13.5 lb./ft. buoyancy in fresh water and 14.4 lb./ft buoyancy in saltwater.

Looking for a Custom Depth Or Length Barrier?

Custom sizes are available on orders of 5+ barriers. Request Quote >
