Paramount Materials — Ground Stabilization
Mud Management Panels (Vehicle Rated)
Interlocking gravel grid panels that lock crushed stone into a firm, permeable surface — eliminating mud, ruts, and washout on driveways, parking areas, and access roads. Vehicle-rated when filled with angular crushed rock.
- Panel Size
- 8' × 22.5'
- Cell Depths
- 3" · 4" · 6"
- Shipping
- Free · all orders
Vehicle-rated, permeable gravel surface
Fills with angular crushed rock
180 sq ft per panel
01
What Are Mud Management Panels?
Gravel Grid

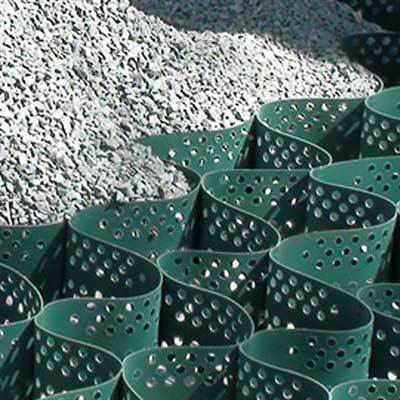

Mud management panels are rigid, interlocking plastic gravel grids — a honeycomb of open cells that you fill with crushed stone. Once filled, the cells confine each piece of gravel so it can't spread, sink, or scatter under a wheel or a boot. The result is a firm, stable, permeable surface that stays put in exactly the places loose gravel normally fails: driveways, parking pads, equipment yards, and unpaved access roads.
The problem they solve is simple. Loose gravel spread over bare soil migrates. Traffic pushes it aside, tires cut ruts, water pools in the low spots, and the stone works its way down into the mud until you're driving on dirt again. A gravel grid interrupts that cycle by holding the aggregate in a structured layer and spreading the load across the whole panel — so the surface carries weight instead of pumping mud up through it.
Paramount's panels measure 8' × 22.5' (180 square feet each) and are offered in 3", 4", and 6" cell depths. Filled with angular crushed rock, they are vehicle-rated and engineered to handle heavy, repeated loads.
02
How Gravel Grid Panels Work
Mechanics
Confinement
Cells lock the stone in place
Each cell walls off a pocket of gravel so it can't migrate sideways or get pushed out by traffic. The aggregate stays where you placed it — no more raking stone back into the ruts every season.
Load Spreading
Weight distributes across the panel
Instead of a tire concentrating force on one spot, the interlocked grid transfers the load across a wide area. That's what lets a filled panel carry vehicles without pumping mud up from the soil below.
Drainage
Water flows straight through
The open-cell structure stays permeable. Rain drains down through the gravel and into the ground rather than sheeting off or ponding on the surface — which is a large part of why the surface stops turning to mud.
03
Where to Use Mud Management Panels
Applications
Driveways & Parking Pads
Turn a rutted gravel driveway or muddy parking area into a firm, all-weather surface. The panels stop tires from cutting channels and keep stone from washing toward the road or spreading into the lawn.
Access & Service Roads
Give delivery trucks, equipment, and maintenance vehicles a stable path across soft or seasonally wet ground. A confined gravel layer holds up to repeated traffic where loose stone alone would rut and disappear.
Equipment & Storage Yards
Keep working yards usable year-round. Panels create a level, load-bearing base for parking trailers, containers, and machinery without the surface churning into mud after every rain.
Overflow & Event Parking
Firm up grass or dirt lots that only see occasional heavy use. The grid protects the ground underneath and gives vehicles a stable place to park without leaving a field of ruts behind.
04
How to Install Gravel Grid Panels
Installation
1

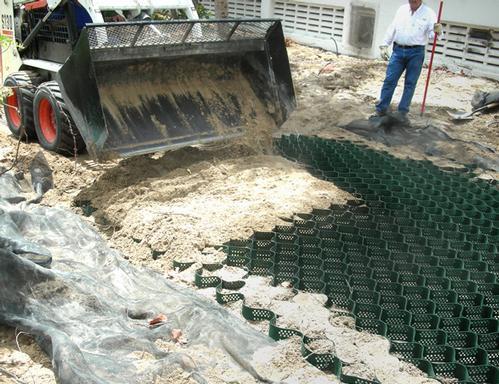

Excavate and grade the base
Remove topsoil and organic material, then grade the area to the depth of your panel plus a compacted base course. Aim for a firm, level subgrade with a slight slope for drainage.
2
Add a compacted base course
Lay and compact a base of crushed aggregate over the prepared subgrade. On soft or wet soils, a layer of woven geotextile fabric beneath the base helps separate the stone from the soil and adds stability.
3

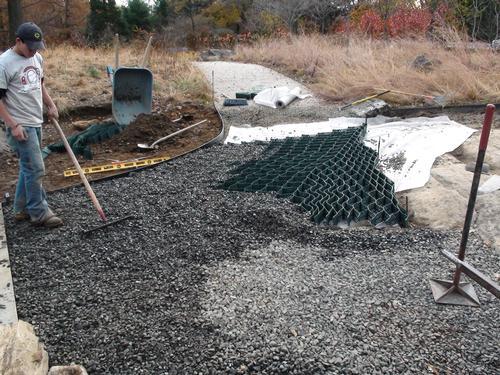

Lay and interlock the panels
Set the panels onto the base and connect them edge to edge so the surface acts as one continuous grid. Cut panels as needed to fit the shape of your driveway, pad, or road.
4

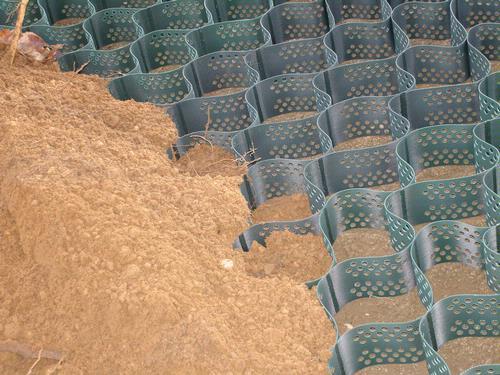

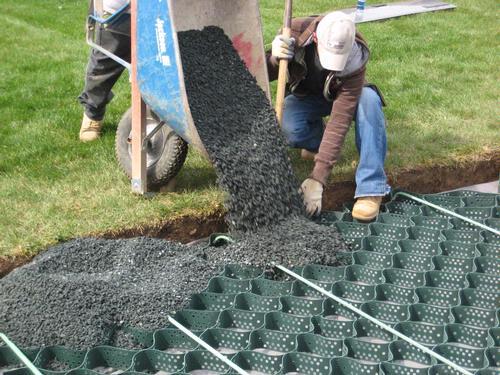

Fill with angular crushed rock
Fill the cells with angular crushed stone and screed level, slightly overfilling so a thin layer covers the tops of the cell walls. Angular rock knits together and locks in place far better than rounded pea gravel.
Gravel tip: Use angular crushed rock, not rounded gravel — the sharp edges interlock and stay put under load. Because the cells confine the stone, a gravel grid also reduces the total depth of aggregate you'd otherwise need for the same stability.
05
Choose Your Panel Depth
Products
All panels are 8' × 22.5' (180 sq ft). Deeper cells hold more gravel and carry heavier, more frequent loads — match the depth to how hard the surface will work.
3" Depth
Mud Management Gravel Grid Panel — 8' × 22.5' × 3"
Light-to-moderate duty. A solid choice for pedestrian paths, patios, and lighter vehicle traffic where a shallower stone layer is enough.
View Full Details
4" Depth
Mud Management Gravel Grid Panel — 8' × 22.5' × 4"
The versatile middle grade. Well suited to residential driveways and regular vehicle traffic that needs a firm, rut-free surface.
View Full Details
6" Depth
Mud Management Gravel Grid Panel — 8' × 22.5' × 6"
Heavy duty. The deepest cells hold the most aggregate for access roads, equipment yards, and the heaviest, most frequent loads.
View Full Details
06
Frequently Asked Questions
FAQ
do gravel grids actually work?
Yes. By confining the stone in individual cells and spreading load across the whole panel, a gravel grid keeps aggregate from migrating and stops the rutting and pumping that turn loose gravel into mud. It's a proven approach for driveways, parking areas, and access roads over soft ground.
are gravel grids worth it for a driveway?
For any driveway that ruts, washes out, or turns muddy, they usually are. Grids eliminate the recurring cost and labor of re-grading and topping up gravel every season, and because the cells confine the stone you can often use less aggregate to get a more stable surface.
what kind of gravel goes in the cells?
Use angular crushed rock rather than rounded pea gravel. The sharp faces of crushed stone interlock and stay put under traffic, while rounded stone tends to roll and shift. Fill the cells and screed level, slightly overfilling so a thin layer covers the cell walls.
can gravel grids be used on a slope?
Yes. Because the cells hold the aggregate in place, gravel grids are especially useful on slopes where loose stone would otherwise wash downhill. Prepare a firm, compacted base and interlock the panels so the surface works as one continuous grid.
do I need to put anything under the panels?
Lay the panels over a compacted crushed-aggregate base. On soft, wet, or unstable soils, adding a woven geotextile fabric beneath the base separates the stone from the soil and adds long-term stability. Firm subgrade prep is the single biggest factor in how well the surface performs.
are these panels vehicle-rated?
Yes — when filled with angular crushed rock, the panels are vehicle-rated and built to withstand heavy loads. Match the cell depth to the duty: shallower panels for lighter traffic, the 6" depth for access roads, equipment yards, and the heaviest use.
how much area does one panel cover?
Each panel is 8' × 22.5', or 180 square feet. To estimate a project, divide your total square footage by 180 to get the number of panels, then round up to allow for cuts and fitting to the shape of your area.
Build a Firm, Mud-Free Surface
Pricing is listed on every product page. Pick the cell depth that matches your traffic, or request a volume quote for larger jobs.
Free shipping on every order.
