Turbidity Curtain Barrier - Type 2 DOT - 8' x 50'

$1,348.88

FREE SHIPPING
SKU TUR-8X50-2-DOT

Turbidity Curtain Barrier - Type 2 DOT - 8' x 50'

Model: TC-8X50-D2
Brand: Tough Guy / AER-FLO

Size: 8' x 50'
Product Specifications: Download Printable Spec Sheet >

Lead Time: Please expect a 5-7 business day lead time prior to shipping on this product.


FREE SHIPPING

VIEW OUR FULL SELECTION OF TURBIDITY CURTAINS >

DO YOU NEED A WRITTEN QUOTE? SUBMIT A QUOTE REQUEST >


FREE SHIPPING

 Require a written quote?
Request Online >

 Questions? Call (800) 748-5647

PRODUCT INFO:

  • Type 2.DOT is the work horse of the TOUGH GUY® line. It has a top load cable and special stress plates for reinforcing the corners and is designed to handle more severe conditions
  • Recommended for lakes, streams, intercoastal and tidal areas where current velocities up to five feet per second are expected.
  • It is highly recommended that you contact a qualified engineer for assistance when facing these conditions because the anchorage and installation must be designed exactly to meet these situations

Why Buy Turbidity Curtains from Paramount Materials?

  • We only sell the Tough Guy brand commercial-grade curtains which are made in the USA. Widely regarded as the “go to brand” for quality and strict adherence to stated specifications.
  • We do not sell "no-name" or "off-brand" curtains. These economy curtains often claim to meet spec but due to oversees manufacturing variances sometimes do not, leaving the installer exposed to potential fines and project delays.
  • When you call, we answer. When you call Paramount Materials you get a live person quickly, ready to help with product or order questions. (M-F 5:00 am - 3:00 pm Pacific Time)

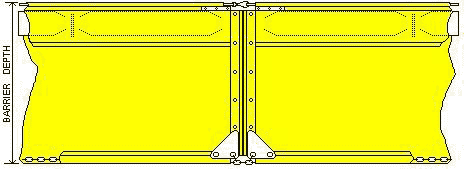

Tough-Guy® Floating Turbidity Barrier Type 2.DOT

Specifications (ST: 10/08)

Fabric - 18 oz. nominal laminated vinyl/ polyester having the following characteristics: Construction - vinyl laminate on 9x9 1000x1300 denier polyester scrim

Weight – 18.5 oz. per sq. yd (434 gr./sq.m) Adhesion – 24 x 20 lb./2”

Grab Tensile – 410 x 410 lb./in. (430 x 421 daN/5cm.)

Tear - 100 x 100 lb./in. (95 x 95 daN)

Hydrostatic – 600 psi (4167 kPa) Cold resistance to crack: -40° F/C

All seams heat sealed

5.8 inch poly rope reinforced vertical edges

#5 brass grommets

5/16 inc. galvanized steel in plastic sleeve 7 x 19 load cable in top, 9800 lb. break strength (4439 daN)

5/16 in. galvanized chain ballast in bottom

Aluminum stress plates at cable and chain termination

EPS flotation, (8 in. x 8 in. standard), 26.7 lb./ft. buoyancy in fresh water, 28.4 lb./ft in saltwater.

Looking for a Custom Depth Or Length Barrier?

Custom sizes are available on orders of 5+ barriers. Request Quote >
