Turbidity Curtain Barrier - Type 2 DOT - 10' x 50'

  • $1,134.05


Turbidity Curtain Barrier - Type 2 DOT - 10' x 50'


Model:
TC-10X50-D2
Brand: Tough Guy / AER-FLO

Size: 10' x 50'
Product Specifications:  SEE BELOW

Lead Time: Please expect a 5-7 business day lead time prior to shipping on this product.


FREE SHIPPING

VIEW OUR FULL SELECTION OF TURBIDITY CURTAINS >

DO YOU NEED A WRITTEN QUOTE? SUBMIT A QUOTE REQUEST >

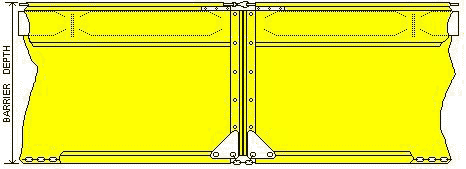

Tough-Guy® Floating Turbidity Barrier Type 2.DOT



Specifications (ST: 10/08)

Fabric - 18 oz. nominal laminated vinyl/ polyester having the following characteristics: Construction - vinyl laminate on 9x9 1000x1300 denier polyester scrim

Weight – 18.5 oz. per sq. yd (434 gr./sq.m) Adhesion – 24 x 20 lb./2”

Grab Tensile – 410 x 410 lb./in. (430 x 421 daN/5cm.)

Tear - 100 x 100 lb./in. (95 x 95 daN)

Hydrostatic – 600 psi (4167 kPa) Cold resistance to crack: -40° F/C



All seams heat sealed

5.8 inch poly rope reinforced vertical edges

#5 brass grommets

5/16 inc. galvanized steel in plastic sleeve 7 x 19 load cable in top, 9800 lb. break strength (4439 daN)

5/16 in. galvanized chain ballast in bottom

Aluminum stress plates at cable and chain termination

EPS flotation, (8 in. x 8 in. standard), 26.7 lb./ft. buoyancy in fresh water, 28.4 lb./ft in saltwater.
