Miragrid 22XT Geogrid - 12' x 200' Roll - TenCate

Miragrid 22XT Geogrid - 12' x 200' Roll - TenCate

$2,580.31
SKU MIRAFI-22XT-12X200



Miragrid 22XT Geogrid - 12' x 200' Roll - TenCate

Model: 22XT-12X200
Brand: TenCate
Size: 12' x 200'
Square Feet / Roll: 2,400
Geogrid Specifications:  Download Miragrid 22XT Specification Sheet



FREE SHIPPING

View our Full Selection of Geogrid >

Do you need a written quote? Submit a quote request >



NOTE: Mirafi branded products are ineligible for return or order cancellation once the order has been shipped. If you would like to purchase an equivalent fabric which is eligible to be returned with a standard restocking fee please give us a call at (800) 748-5647.

This Product is Stocked in the California and Georgia Distribution Centers Only.

FREE SHIPPING

 Require a written quote?
Request Online >

 Questions? Call (800) 748-5647

PRODUCT SUMMARY

  • High long-term design strengths (LTDS): Miragrid® geogrids have more than 220,000 hours of tension creep testing performed at an independent test laboratory.
  • Credible: Dependable long term strength assured.
  • Cost effective: Creep resistant polyester fibers provide higher allowable tensile strength, minimizing the required number of geogrid layers. Wide rolls significantly reducing placement time, lowering cost.
  • Light weight: Easy to handle and no sharp edges.
  • Flexible, tough: Minimizes movement of soil structure.
  • Strength: Miragrid® geogrids provide the widest strength range, and are the highest strength geogrid material in the market today.

TenCate Miragrid® XT uniaxial geogrids function for:
- Soil Reinforcement

Fabric Shipping Time - Georgia Warehouse:

By default, Mirafi fabric orders ship from the Georgia warehouse where a full stock of the Mirafi fabric types are maintained. Most orders ship same day (M-F) if order is placed before 11:00 AM EST. Transit times displayed in the map are listed in business days, are approximate and are specific to the Mirafi fabric line. The day that the order is shipped is not counted as a transit day. Most Mirafi fabric rolls ship via LTL freight. For expedited shipping rates please call: (800) 748-5647

The transit times displayed on the map are for our free shipping option.

Fabric Shipping Time - Southern California Warehouse:

Note: By default, orders ship from the Georgia warehouse with the standard transit times shown above. If you would like your order to ship from the Southern California warehouse (Mira Loma) you must first fill out a stock check request. Orders can also be picked up at this warehouse location if preferred. Southern California warehouse orders must be placed over the phone.

Most Mirafi fabric California warehouse orders ship same day (M-F) if order is placed before 11:00 AM EST. Transit times displayed in the map are listed in business days, are approximate and are specific to the Mirafi fabric line. The day that the order is shipped is not counted as a transit day. Most Mirafi fabric rolls ship via LTL freight. For expedited shipping rates please call: (800) 748-5647

The transit times displayed on the map are for our free shipping option.

PRODUCT INFORMATION

TENCATE MIRAGRID® XT UNIAXIAL GEOGRIDS:

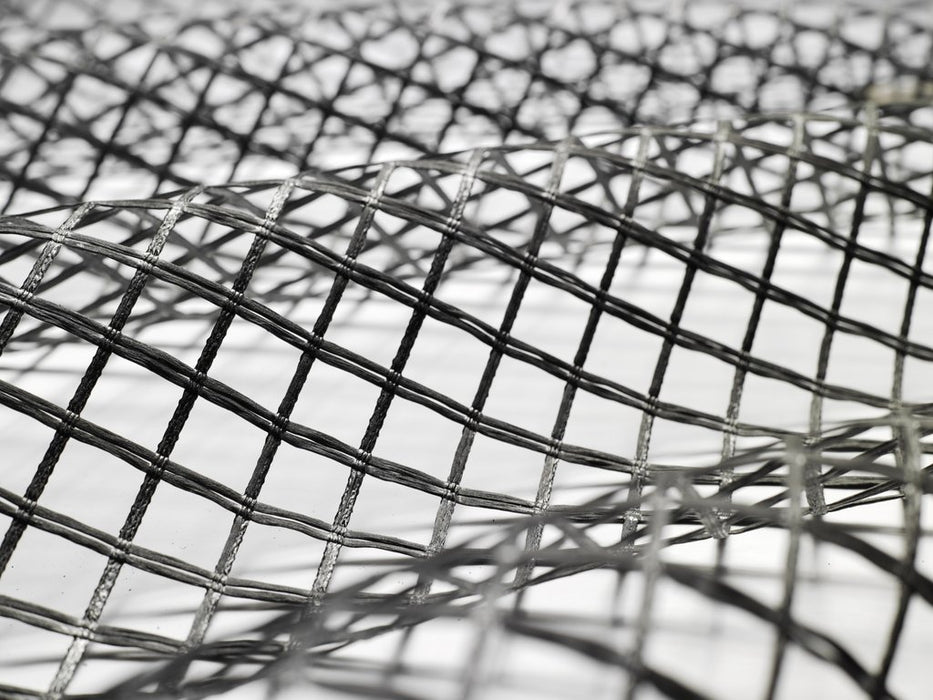

TenCate Miragrid® XT uniaxial geogrids are high performance woven polyester and polymer-coated geogrids used for soil reinforcement. TenCate Miragrid® XT uniaxial geogrids are used in Mechanically Stabilized Earth applications including internally reinforced walls, segmental retaining walls (SRW's), and steepend slopes. TenCate Miragrid® XT uniaxial geogrids provide high, long-term design strengths (LTDS) and excellent soil interaction. TenCate Miragrid® XT uniaxial geogrids are constructed of high tenacity, high molecular weight, woven polyester to deliver long-term performance.


The Difference TenCate Miragrid® XT uniaxial geogrids make:

- Flexible and durable
- Excellent creep resistance
- High long-term design strengths
- Lightweight and easily handled
- Cost effective
- Custom fabricated
- System Solutions:

Mechanically Stabilized Earth

- Steepened Slopes: Vegetated and Wrapped Faced
- Walls: Permanent and Temporary
- Segmented Retaining Walls
- Void Spanning
- Veneer Reinforcement
- Soil Reinforcement
- Landfills

Downloads:

 Product Description Sheet (MARV)

2XT Product Description Sheet

2XT Tri-fold

Engineered Structures Brochure

Mechanically Stabilized Earth Line Card

NTPEP Report REGEO-2011-01-001

NTPEP Report REGEO-2015-01-002



Technical Data Sheet PDF (MARV):



Case Studies:
