Mirafi FW404 Geotextile Fabric

Mirafi FW404 Geotextile Fabric - 15' x 300' Roll - TenCate

$2,415.90


FREE SHIPPING
SKU MIRAFI-FW404-15x300


Roll Coverage Calculator
Rolls Needed
--rolls
This product: 4500 sq ft / roll
Geotextile Spec Finder Find the fabric that match your plan's specs →

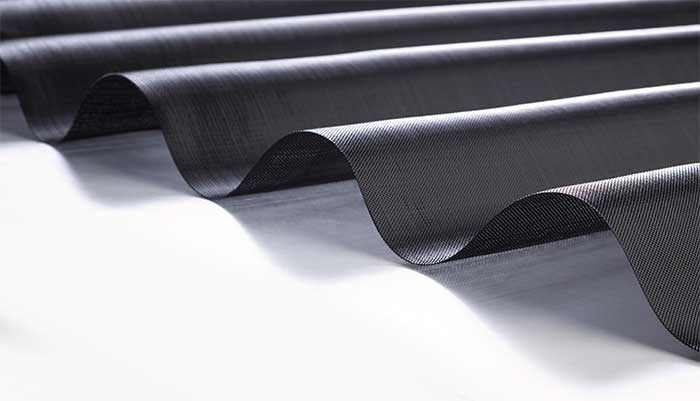

Mirafi FW404 Series Geotextile Fabric - 15' x 300' Roll

Model: FW404-15X300
Brand: Mirafi - TenCate
Size: 15' x 300'
Square Feet / Roll: 4,500
Weight: 290 lbs
Fabric Specifications:  Download FW404 Specification Sheet

Do you need a written quote? Submit a quote request >

This fabric is produced in the state of Georgia, USA and can meet Build America / Buy America (BABA) requirements when requested. If ordering this fabric for a BABA project be sure to indicate that a BABA fabric is required in the “order message” field on the cart page.

NOTE: Mirafi branded products are ineligible for return or order cancellation once the order has been shipped. If you would like to purchase an equivalent fabric which is eligible to be returned with a standard restocking fee please give us a call at (800) 748-5647.

Why Choose Mirafi FW404?

5 reasons engineers specify Mirafi monofilament woven fabric over generic alternatives

Heavy-Duty Monofilament for Class 1 Railroad & Aggressive Drainage

High grab tensile and puncture resistance survives installation under large stone fills, ballast, and aggressive drainage trench conditions.

AREMA-Compliant for Railroad Track Subsurface Drainage

Meets AREMA geotextile requirements for Class 1 railroad drainage applications — one of few fabrics that satisfies this demanding specification by name.

DOT Pre-Approved, ASTM-Tested

Mirafi FW404 appears on state DOT qualified products lists and has published ASTM grab tensile, AOS, and permittivity data for project submittals.

USA-Made, BABA Eligible

Produced in Georgia — qualifies for Build America / Buy America requirements on federally funded railroad and highway projects.

40+ Years on Infrastructure Projects

TenCate Mirafi FW-series monofilament fabrics have a long history on DOT and railroad projects where filtration and survivability performance is documented.

Frequently Asked Questions

This Product is Stocked in the California and Georgia Distribution Centers Only.

FREE SHIPPING

 Require a written quote?
Request Online >

 Questions? Call (800) 748-5647

PRODUCT SUMMARY

  • Engineered Filtration: Resists clogging while maintaining flow rates in high gradient and dynamic flow conditions.
  • Durability: High survivability rating in aggressive installation and loading conditions along with excellent resistance to chemicals in aggressive environments.
  • Soil Interaction: Superior soil confinement resulting in greater load distribution.
  • Unique Constructions: Manufactured with highly UV stabilized multifilament fibers which provide uniform opening size (AOS) while maintaining high long-term flow rates. Mirafi ® FW-Series geotextiles are manufactured with specialized processes to produce unique physical and hydraulic properties not possible with standard geotextiles, woven or nonwoven.
  • Seams: Panels can be sewn together in the factory or field, providing cross-roll direction strength to facilitate installation

YOUR TRUSTED
MIRAFI SUPPLIER

  • We are an authorized Mirafi distributor.
  • We only sell genuine Mirafi fabric. We never ship mislabeled overruns or "knock-offs".
  • You order Mirafi, we ship Mirafi. Even if a stock issue arises we never substitute for another brand without the customer's direct consent.
  • When you call, we answer. When you call Paramount Materials you get a live person quickly, ready to help with product or order questions. (M-F 5:00 am - 3:00 pm Pacific Time)

Fabric Shipping Time - Georgia Warehouse:

By default, Mirafi fabric orders ship from the Georgia warehouse where a full stock of the Mirafi fabric types are maintained. Most orders ship same day (M-F) if order is placed before 11:00 AM EST. Transit times displayed in the map are listed in business days, are approximate and are specific to the Mirafi fabric line. The day that the order is shipped is not counted as a transit day. Most Mirafi fabric rolls ship via LTL freight. For expedited shipping rates please call: (800) 748-5647

The transit times displayed on the map are for our free shipping option.

Fabric Shipping Time - Southern California Warehouse:

Note: By default, orders ship from the Georgia warehouse with the standard transit times shown above. If you would like your order to ship from the Southern California warehouse (Mira Loma) you must first fill out a stock check request. Orders can also be picked up at this warehouse location if preferred. Southern California warehouse orders must be placed over the phone.

Most Mirafi fabric California warehouse orders ship same day (M-F) if order is placed before 11:00 AM EST. Transit times displayed in the map are listed in business days, are approximate and are specific to the Mirafi fabric line. The day that the order is shipped is not counted as a transit day. Most Mirafi fabric rolls ship via LTL freight. For expedited shipping rates please call: (800) 748-5647

The transit times displayed on the map are for our free shipping option.

PRODUCT INFORMATION - FW SERIES FABRICS:

TenCate Mirafi® FW-Series woven monofilament polypropylene geotextiles function for:

Filtration
Separation
Erosion Protection

The Difference TenCate Mirafi® FW-Series woven monofilament polypropylene geotextiles make:

Highly UV stabilized
High strengths for durability and survivability
Consistent, measurable pore sizes
Long-term clogging resistance
High flow rates
Superior soil confinement
Cross roll direction strength when panels sewn together

System Solutions:

Erosion Control
- Revetments
- Land Reclamation

Waste Management
- Landfill Drainage and Filtration

Water Management
- Subsurface Drainage
- Water Containment
- Water Protection

TenCate Mirafi® S Series Specification Sheets


Case Studies
