Class 3 Geotextile Fabric - Nonwoven

Class 3 Geotextile Fabric - Nonwoven

$1,266.67


FREE SHIPPING
SKU MIRAFI-140N-12.5x360

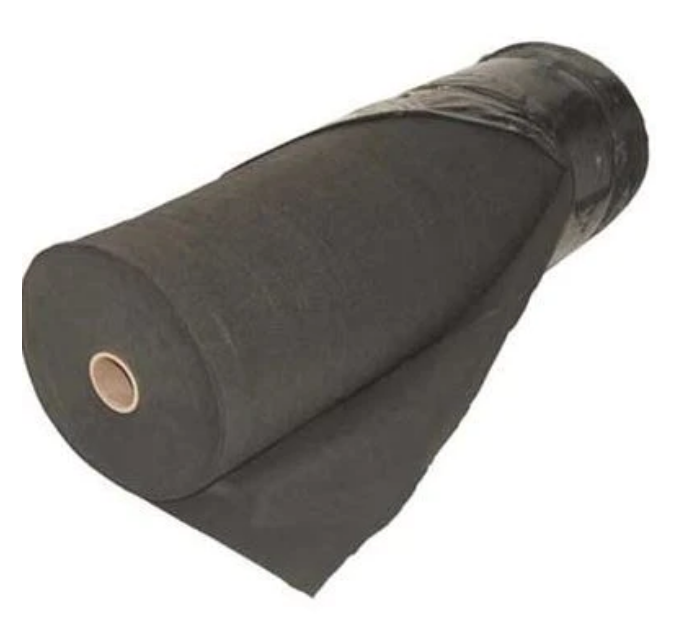

The Mirafi 140N is a class 3 geotextile fabric for surface drainage applications. This non-woven fabric is designed to allow for both water flow and dimensional stability. The fabric is both rot and mildew resistant and is designed for permanent commercial installations.

The definition of a “class 3 geotextile” can vary slightly depending on the municipality, DOT or project engineer. Be sure to refer to the specification sheet below to ensure that this fabric meets the specific definition of a class 3 geotextile for your project.

Please refer to the chart below and specification sheet for additional pertaining to this fabric and its AASHTO M288 classification.

AASHTO Selection Sheet: Download

Looking for 5+ rolls? Please contact us for a written quote >

NOTE: Mirafi branded products are ineligible for return or order cancellation once the order has been shipped. If you would like to purchase an equivalent fabric which is eligible to be returned with a standard restocking fee please give us a call at (800) 748-5647.

This Product is Stocked in the California and Georgia Distribution Centers Only.

FREE SHIPPING

 Require a written quote?
Request Online >

 Questions? Call (800) 748-5647

PRODUCT SUMMARY

  • Construction: Mirafi ® N-Series polypropylene nonwoven geotextiles easily conform to the ground or trench surface for trouble free installation.
  • Strength: Mirafi ® N-Series geotextiles withstand installation stresses with high puncture and tear resistance.
  • Drainage: High permittivity properties provide high water flow rates while providing excellent soil retention.
  • Environmental: Mirafi ® N-Series geotextiles are chemically stable in a wide range of aggressive environments.
  • Cost Effective: Mirafi ® N-Series geotextiles provide economical solutions to many civil engineering applications including a cost effective alternative to graded aggregate filters.

YOUR TRUSTED
MIRAFI SUPPLIER

  • We are an authorized Mirafi / Tencate distributor.
  • We only sell genuine Mirafi geogrid. We never ship mislabeled overruns or "knock-offs".
  • You order Mirafi, we ship Mirafi. Even if a stock issue arises we never substitute for another brand without the customer's direct consent.
  • When you call, we answer. When you call Paramount Materials you get a live person quickly, ready to help with product or order questions. (M-F 5:00 am - 3:00 pm Pacific Time)

Fabric Shipping Time - Georgia Warehouse:

By default, Mirafi fabric orders ship from the Georgia warehouse where a full stock of the Mirafi fabric types are maintained. Most orders ship same day (M-F) if order is placed before 11:00 AM EST. Transit times displayed in the map are listed in business days, are approximate and are specific to the Mirafi fabric line. The day that the order is shipped is not counted as a transit day. Most Mirafi fabric rolls ship via LTL freight. For expedited shipping rates please call: (800) 748-5647

The transit times displayed on the map are for our free shipping option.

Fabric Shipping Time - Southern California Warehouse:

Note: By default, orders ship from the Georgia warehouse with the standard transit times shown above. If you would like your order to ship from the Southern California warehouse (Mira Loma) you must first fill out a stock check request. Orders can also be picked up at this warehouse location if preferred. Southern California warehouse orders must be placed over the phone.

Most Mirafi fabric California warehouse orders ship same day (M-F) if order is placed before 11:00 AM EST. Transit times displayed in the map are listed in business days, are approximate and are specific to the Mirafi fabric line. The day that the order is shipped is not counted as a transit day. Most Mirafi fabric rolls ship via LTL freight. For expedited shipping rates please call: (800) 748-5647

The transit times displayed on the map are for our free shipping option.

PRODUCT INFORMATION - N SERIES FABRICS:

TenCate Mirafi® N-Series nonwoven polypropylene geotextiles are staple fibers used for soil separation and drainage. They combine high durability, along with excellent physical and hydraulic properties. TenCate Mirafi® N-Series geotextiles are produced from polypropylene staple fibers and combine high water flow rates and durability while providing excellent soil retention. TenCate Mirafi® N-Series geotextiles are used in a wide variety of applications including subsurface drainage and roadway separation applications.

TenCate Mirafi® N-Series nonwoven polypropylene geotextiles function for:

- Separation
- Drainage
- Filtration

The Difference TenCate Mirafi® N-Series nonwoven polypropylene geotextiles make:

- Easily conforms to ground or trench surfaces for trouble-free installation
- Cost effective
- High permittivity properties allow high water flow while having excellent soil retention
- Chemically stable for use in aggressive environments

System Solutions:

Waste Management

- Landfill Drainage and Filtration
- Barriers

Water Management

- Subsurface Drainage
- Highways
- Under airfields
- Athletic fields
- Water Containment
- Water Protection

TenCate Mirafi® N-Series nonwoven polypropylene geotextiles…geosynthetics that make a difference.



TenCate Mirafi® N-Series

Product Description Sheet

Installation Guidelines
CSI Specifications
Technical Notes
CAD Drawings

Technical Data Sheet PDF (MARV)

135N               180N
140NL             180NC
140NC            1100N
140N              1100NC
150N              1100NPA
160N              1120N
170N              1160N



Case Studies
