Oregon ODOT - Geotextile Uses

Oregon projects span saturated coastal marshes, soft alluvium in the Willamette Valley, volcanic soils and cinders on the east side, and steep, landslide-prone corridors in the Coast Range and Cascades. Add winter “atmospheric river” storms, spring snowmelt, wildfire burn scars, and freeze–thaw pockets at elevation, and you get subgrades that can soften, pump fines, rut, scour, or move. Geotextiles are the quiet engineering layer that helps pavements, structures, and drainage systems keep performing.

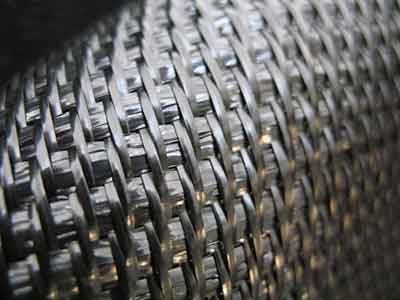

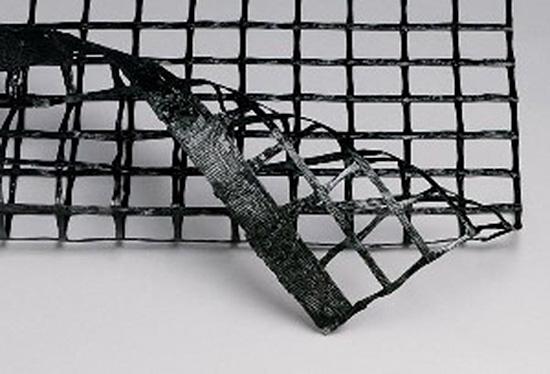

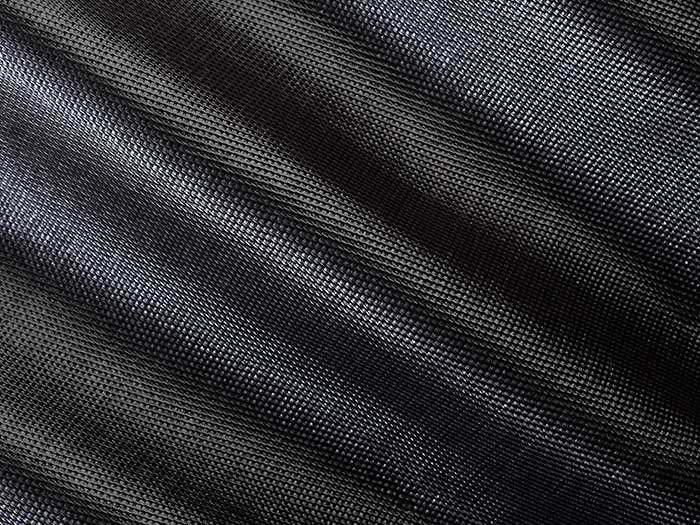

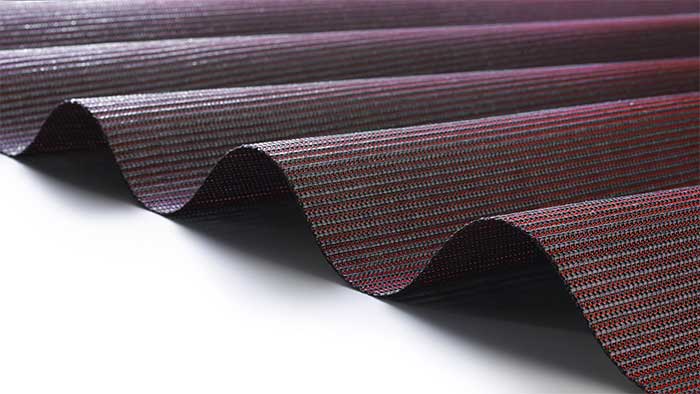

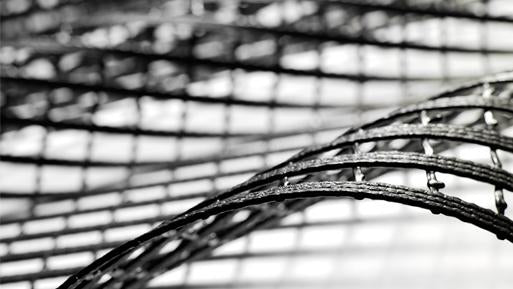

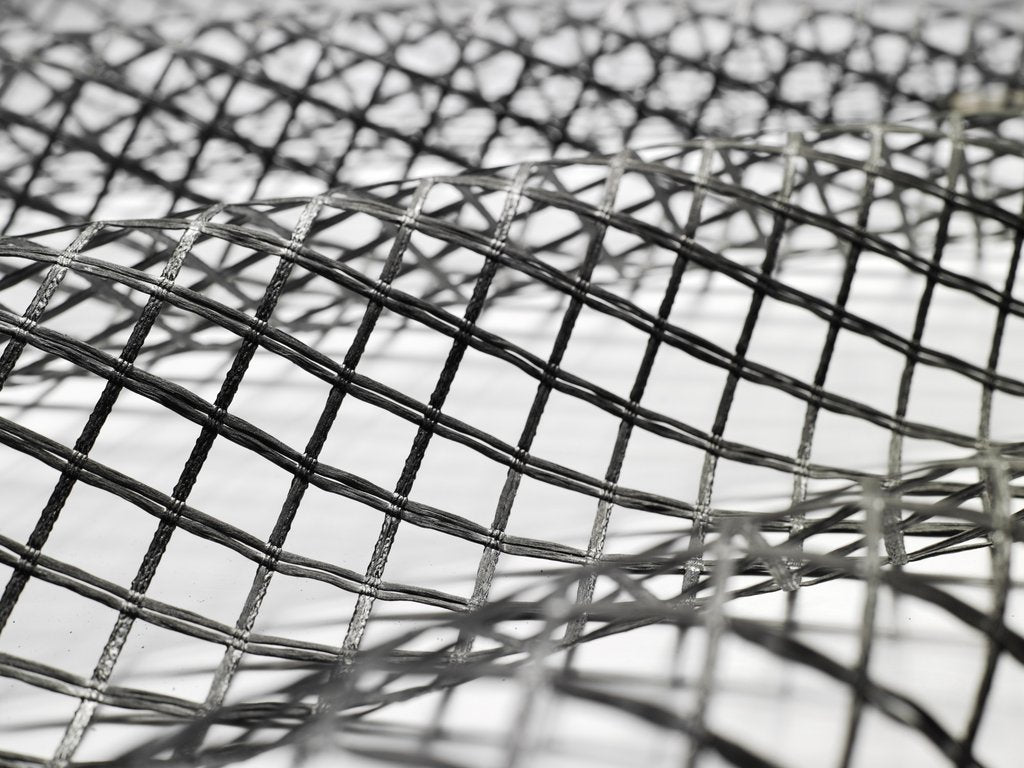

Separation and stabilization. On new lanes, shoulder widenings, and rehab work, ODOT places a woven geotextile between native soil and granular base. It keeps fine soils—valley silts, decomposed basalt fines, and coastal sands—from migrating up into the aggregate under traffic, spreads load, and preserves base thickness. Where subgrades are very soft or saturated (floodplain approaches, tidal lowlands, utility cuts), crews first roll out fabric to create a working platform so trucks and pavers don’t punch through. On exceptionally weak ground or slide repairs, geotextile is often paired with geogrid to add stiffness and speed construction.

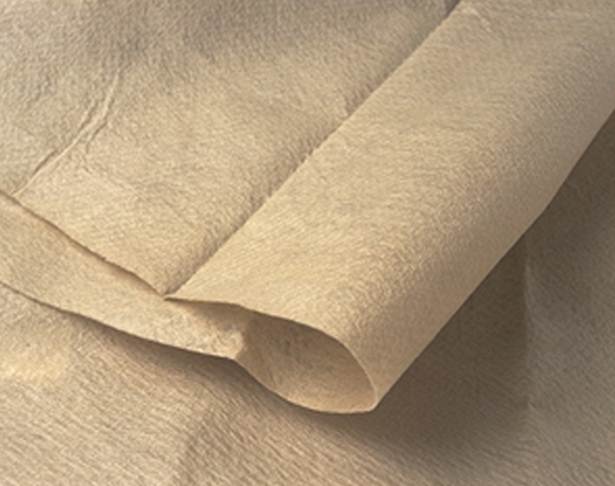

Filtration and drainage. Water drives many failures in Oregon. Nonwoven geotextiles line underdrain trenches, wrap perforated pipe, and separate drainage stone from surrounding soils behind retaining walls and abutments. Selecting appropriate apparent opening size (AOS) and permittivity lets water move while fines stay put, minimizing clogged outlets, wet spots, and shoulder drop-offs after prolonged rain. In the high desert, a nonwoven over open-graded aggregate also forms a capillary break, limiting upward moisture that weakens base layers during freeze–thaw.

Riprap underlayment and scour control. Where flows concentrate—culverts, storm outfalls, river bends, and coastal works—geotextiles serve as underlayment beneath riprap or armor stone. A tough nonwoven filter is placed on the prepared bed or slope before rock. It prevents subgrade from piping through rock voids during high velocities, tidal drawdown, debris-laden post-fire floods, and seasonal peaks on rivers like the Rogue, Umpqua, and Deschutes. On steep channels or fluctuating water levels, seams are overlapped generously or sewn and anchored to stay continuous under shifting hydraulics.

Structures and walls. ODOT corridors include many mechanically stabilized earth (MSE) walls and grade separations. Geotextiles act as joint and face filters, tucked behind panel or block joints so backfill fines don’t migrate to the face while maintaining drainage continuity. The same concept applies at wingwalls, backwalls, and around structural penetrations, preserving weeps and outlets without trapping water—important for durability and for keeping facings clean.

Pavement interlayers. Asphalt-impregnated nonwoven geotextile placed beneath overlays improves waterproofing and slows reflective cracking—useful where heavy rain, temperature swings, studded tires in mountain passes, and high truck volumes accelerate pavement aging. On chip seals used widely outside metro areas, paving fabrics limit water intrusion into base and subgrade, extending service life with minimal added thickness.

Erosion, sediment control, and access. Geotextiles appear in silt fence, inlet protection, curb socks, and check structures, filtering runoff while trapping fines—crucial for stormwater compliance in salmon-bearing watersheds and on steep, disturbed slopes. At project entrances, stabilized construction exits typically include a nonwoven geotextile under coarse rock; the fabric spreads wheel loads and keeps stone from punching into wet soils, reducing track-out and mud on public roads.

Liner protection and containment. Heavy nonwoven geotextiles cushion geomembranes in stormwater ponds, lined ditches, salt-shed pads, and deicing-brine containment, protecting liners from puncture by angular aggregate and construction traffic.

Performance hinges on basics: prepare subgrades smooth, avoid wrinkles, overlap or sew seams as required, anchor with pins or the first lift, and cover promptly to limit UV and storm exposure. Selection is function-driven—woven for stabilization and tensile capacity; nonwoven for filtration, drainage, and protection—tuned to Oregon’s soils, hydraulics, and traffic demands.
