Miramesh GR Biaxial Geosynthetic - 8' x 150' Roll - TenCate

$1,040.16
SKU Miramesh-GR



Miramesh GR Biaxial Geosynthetic - 8' x 150' Roll - TenCate

Model: Miramesh GR
Brand: TenCate

Size: 8' x 150'
Square Feet / Roll: 1,200
Geogrid Specifications:  Download Miramesh GR Specification Sheet



FREE SHIPPING

View our Full Selection of Geogrid >

Do you need a written quote? Submit a quote request >



NOTE: Mirafi branded products are ineligible for return or order cancellation once the order has been shipped. If you would like to purchase an equivalent fabric which is eligible to be returned with a standard restocking fee please give us a call at (800) 748-5647.

This Product is Stocked in the California and Georgia Distribution Centers Only.

FREE SHIPPING

 Require a written quote?
Request Online >

 Questions? Call (800) 748-5647

PRODUCT SUMMARY

  • Strength: Biaxial strength to provide uniform design strengths and facilitate one layer installation for secondary reinforcement and face erosion protection.
  • Vegetation Support: Vegetation testing shows Miramesh® geosynthetics perform better than biaxial geogrids and geotextiles in providing a suitable platform for plant growth. The uniquely designed aperture construction allows for retention of soil particles, while encouraging vegetation growth.
  • Flexible: Easily conforms to the slope or wall face to provide a stable platform vegetation.
  • Design Life: Available in 75 to 100 year permanent design life exposed to sunlight

TenCate Miramesh biaxial geogrids function for:
- Soil Reinforcement
- Confinement
- Erosion Protection

YOUR TRUSTED
MIRAFI SUPPLIER

  • We are an authorized Mirafi / Tencate distributor.
  • We only sell genuine Mirafi geogrid. We never ship mislabeled overruns or "knock-offs".
  • You order Mirafi, we ship Mirafi. Even if a stock issue arises we never substitute for another brand without the customer's direct consent.
  • Hate phone trees? So do we. When you call Paramount Materials you get a live person within a few rings, ready to help with product or order questions 5am - 5pm PST.

Fabric Shipping Time - Georgia Warehouse:

By default, Mirafi fabric orders ship from the Georgia warehouse where a full stock of the Mirafi fabric types are maintained. Most orders ship same day (M-F) if order is placed before 11:00 AM EST. Transit times displayed in the map are listed in business days, are approximate and are specific to the Mirafi fabric line. The day that the order is shipped is not counted as a transit day. Most Mirafi fabric rolls ship via LTL freight. For expedited shipping rates please call: (800) 748-5647

The transit times displayed on the map are for our free shipping option.

Fabric Shipping Time - Southern California Warehouse:

Note: By default, orders ship from the Georgia warehouse with the standard transit times shown above. If you would like your order to ship from the Southern California warehouse (Mira Loma) you must first fill out a stock check request. Orders can also be picked up at this warehouse location if preferred. Southern California warehouse orders must be placed over the phone.

Most Mirafi fabric California warehouse orders ship same day (M-F) if order is placed before 11:00 AM EST. Transit times displayed in the map are listed in business days, are approximate and are specific to the Mirafi fabric line. The day that the order is shipped is not counted as a transit day. Most Mirafi fabric rolls ship via LTL freight. For expedited shipping rates please call: (800) 748-5647

The transit times displayed on the map are for our free shipping option.

PRODUCT INFORMATION

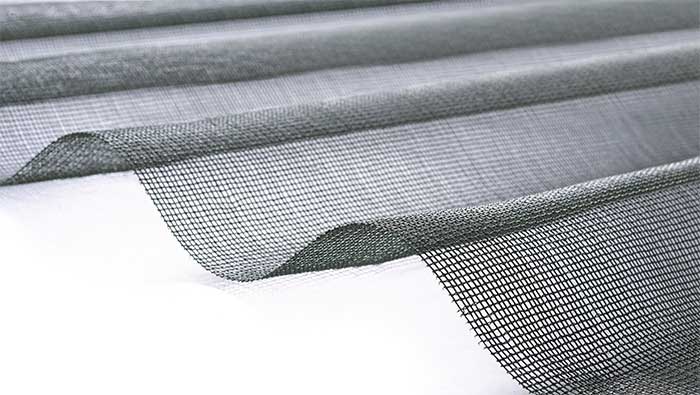

Miramesh TR is composed of black high-tenacity polypropylene yarns that are woven together to produce an open mesh geotextile. Miramesh TR is inert to biological degradation and resistant to naturally encountered chemicals, alkalis, and acids.

Untitled 1

Downloads:

Product Description Sheet (MARV)

2XT Product Description Sheet

2XT Tri-fold

Engineered Structures Brochure

Mechanically Stabilized Earth Line Card

NTPEP Report REGEO-2011-01-001

NTPEP Report REGEO-2015-01-002

Miramesh Geogrids

Miramesh Product Description Sheet



Technical Data Sheet PDF (MARV)



Case Studies

Case Study: Mirafi Miramesh GR For Excellent Drainage

The Challenge

The UltraFlex® Articulating Concrete Block Mat or ACBM is a popular choice for protecting an earthen spillway that was previously lined with grass. Several events of water rising over the top of a barrier have eroded the grass leading to significant damage to the existing spillway.

Design

ACBM systems are popularly used to protect embankments, barriers, or earthen spillways.  To improve performance and help the progress of construction, an aggregate drainage medium is needed as a part of the ACBM system. The first material to be placed directly onto the prepared sand covering was Mirafi® FW300 woven geotextile. It was followed by a 4 to 6-inch layer of clean stone measuring between 1.0 to 1.5-inches in diameter. Now, a layer of  Miramesh® GR is placed on top of the aggregate bedding that the UltraFlex® System was also directly applied.

Submar Inc started testing Miramesh® GR at Colorado State University in 2009. The test consisted of  Miramesh® GR placed between the tapered UltraFlex system and aggregate drainage medium.  Because the tests were very positive, installation in the field began shortly thereafter.

Performance

For a very long time, a plastic geogrid was used instead of Miramesh® GR. Several engineers, as well as contractors, reported a problem that geogrid develops a memory which made installation very difficult to do. Geogrid is a very rigid composition causing workers to walk over the prepared aggregate drainage medium leading to footprints and indentations. Because Miramesh® GR is very flexible, it has eliminated this problem.

Another problem with geogrid, when the ACBM systems become backfilled with topsoil and seed, the large openings in the geogrid  (around 1x1 inch) would start to contaminate the aggregate drainage or the filter layer.

MirameshGR has effectively solved the problem by retaining the underlying aggregate during severe weather conditions or other serious events. These events can prevent the soil from traveling down through the system that can lead to backups or clogging.
