Minnesota MNDOT Geotextile Fabrics

Solmax DOT Standard Specification Product Chart (click image to expand)

Minnesota MNDOT - Geotextile Uses

Minnesota projects cross glacial tills, lakebed clays, sandy outwash, and pockets of peat and organics. Add long freeze–thaw seasons, deep frost, snowmelt surges, spring floods on flat river valleys, and deicing salts, and you get subgrades that can soften, pump fines, rut, and erode. Geotextiles are the quiet engineering layer that keeps pavements, structures, and drainage systems performing.

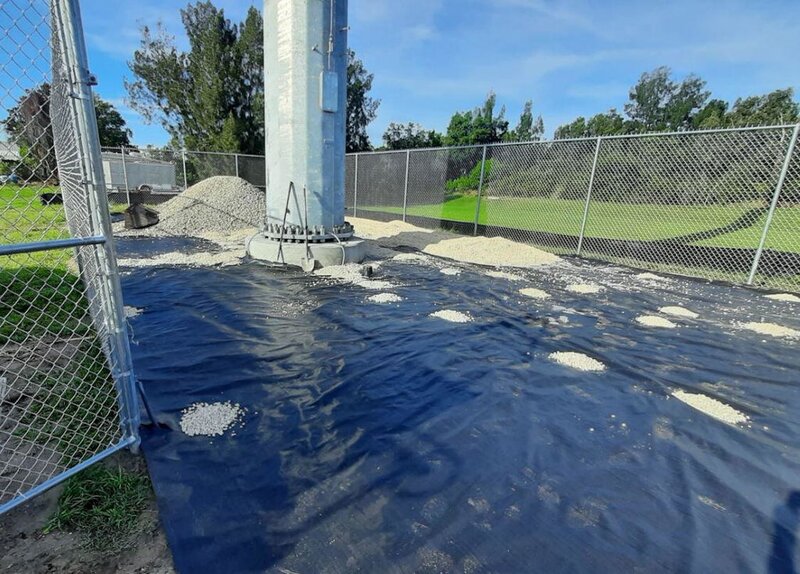

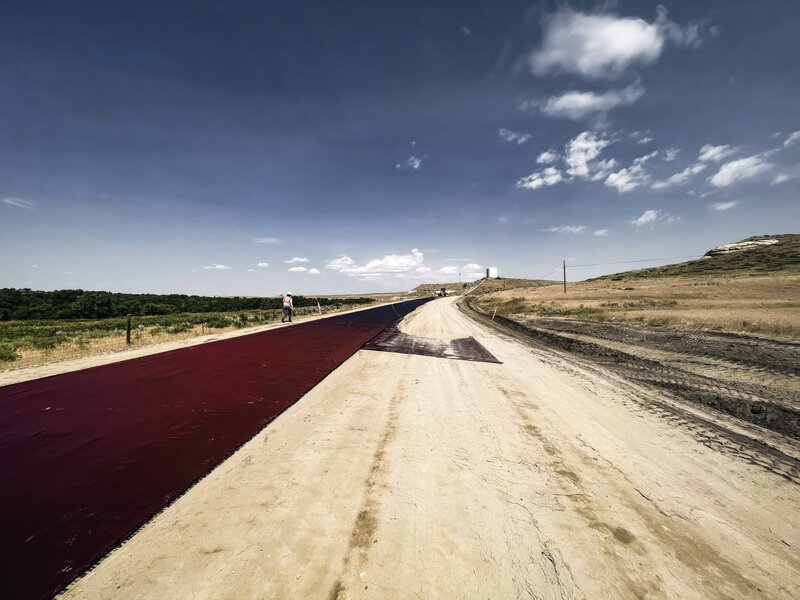

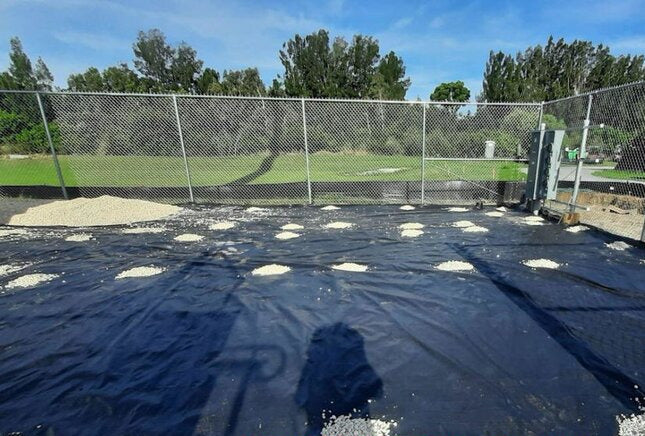

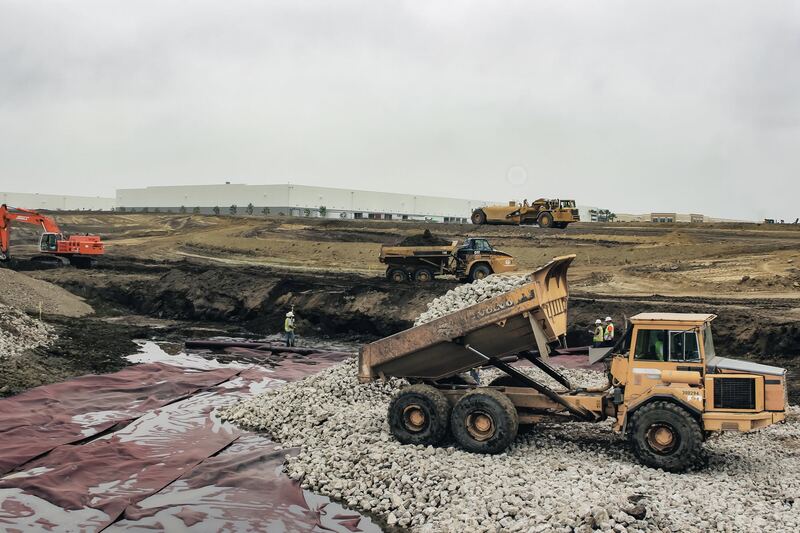

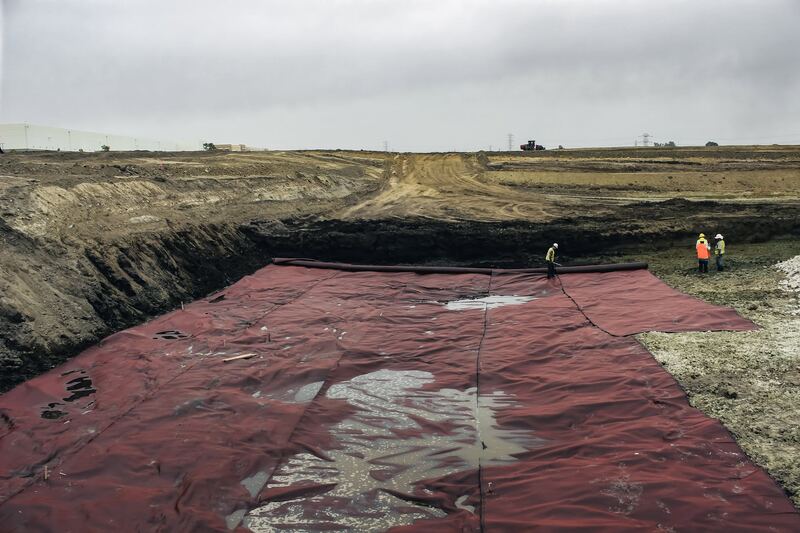

Separation and stabilization. On new lanes, shoulder widenings, and rehab work, a woven geotextile is placed between native soil and granular base or subbase. It keeps fine soils—especially silts and clays—out of the aggregate under traffic, spreads load, and preserves base thickness. Over very soft ground (peaty areas, floodplain approaches, utility cuts), geotextile creates a working platform so trucks and pavers don’t punch through during construction. Where subgrades are exceptionally weak, the fabric is often paired with geogrid to add stiffness and expedite production.

Filtration and drainage. Water drives many failures in Minnesota. Nonwoven geotextiles line underdrain and edge-drain trenches, wrap perforated pipe, and separate drainage aggregate from surrounding soils behind retaining walls and backwalls. Correct apparent opening size (AOS) and permittivity let water move while fines stay put, reducing clogged outlets, wet spots, and shoulder drop-offs. In freeze-thaw zones, a nonwoven over open-graded aggregate also forms a capillary break, limiting upward moisture that fuels frost heave and weakens base layers in winter.

Riprap underlayment and scour control. Where flows concentrate—culverts, storm outfalls, streambanks, lake shorelines, and river bends—geotextiles serve as underlayment beneath riprap or rock armor. A tough nonwoven filter goes on the prepared slope or bed before stone placement. It prevents the subgrade from piping through rock voids during high velocities, ice-out events, and debris-laden floods, helping the rock “lock in” and protecting embankments at bridge approaches and channel transitions.

Structures and MSE walls. MnDOT corridors include many mechanically stabilized earth (MSE) walls and grade separations. Geotextiles act as joint and face filters, tucked behind panel or block joints so backfill fines don’t migrate to the face while drainage continuity is preserved. The same concept applies at wingwalls, backwalls, and structural penetrations, where a filter layer protects weeps and outlets from silty inflow without trapping water.

Pavement interlayers. Asphalt-impregnated nonwoven geotextile placed beneath overlays improves waterproofing and slows reflective cracking—important where thermal cycling, heavy axle loads, and deicing brines accelerate pavement aging. On chip seals common to secondary routes, paving fabrics help limit water intrusion into base and subgrade, extending service life with minimal added thickness.

Temporary erosion and sediment control. Geotextiles appear in silt fence, inlet protection, curb socks, and check structures. They filter runoff while trapping fines—critical for stormwater compliance on steep cuts, long medians, and urban work zones. At project entrances, stabilized construction exits typically include a nonwoven geotextile beneath coarse rock; the fabric spreads wheel loads and prevents stone from punching into wet soils, reducing track-out onto public roads.

Liner protection and containment. Heavy nonwoven geotextiles cushion geomembranes in stormwater basins, lined ditches, salt-shed pads, and deicing-brine containment areas, protecting liners from puncture by angular aggregate and construction traffic.

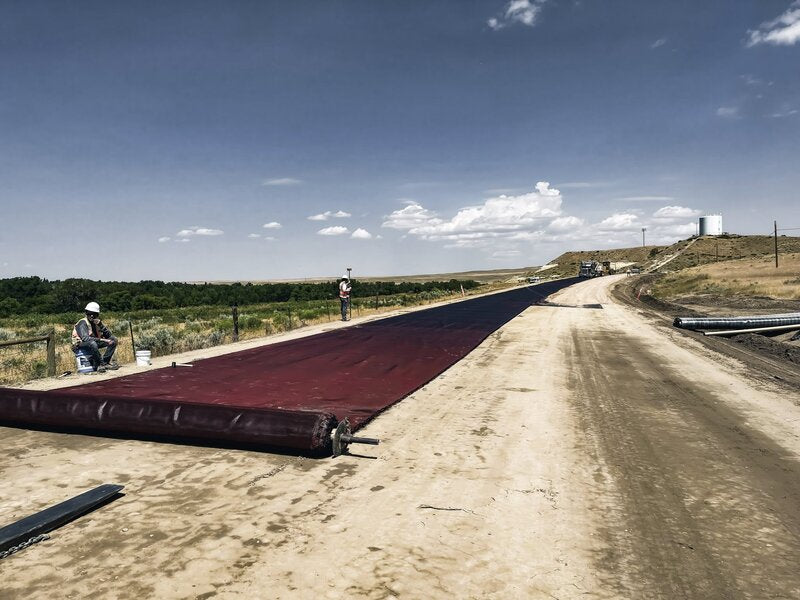

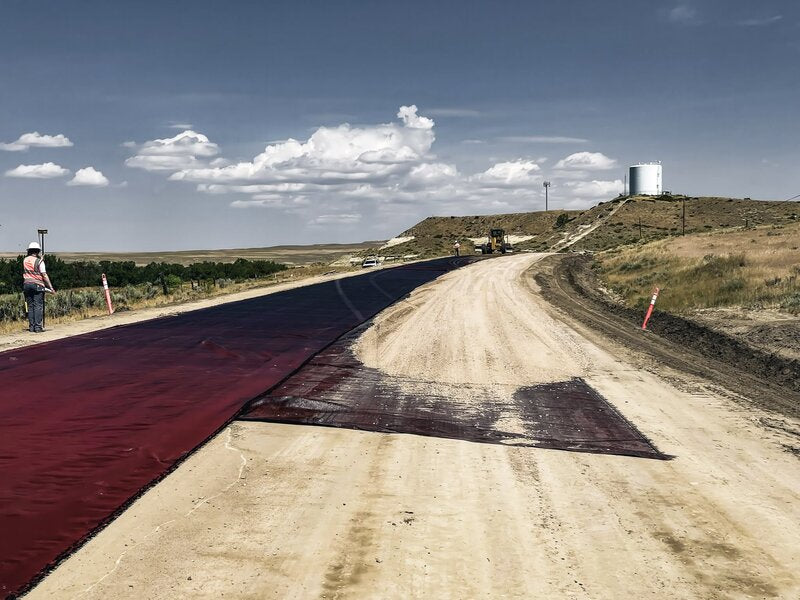

Field practice. Performance hinges on basics: prepare subgrades smooth, avoid wrinkles, overlap or sew seams as required, anchor with pins or the first lift, and cover promptly to limit UV exposure and winter weathering. Selection is function-driven—woven for stabilization and tensile capacity; nonwoven for filtration, drainage, and protection—tuned to Minnesota’s soils, hydraulics, and traffic demands.

Bottom line: on MnDOT projects, geotextile isn’t “landscape fabric.” It’s a purpose-chosen engineering layer that stabilizes soft ground, controls water and fines through harsh seasons, protects structures and channels, and stretches pavement life statewide.
