Kansas KDOT - Geotextile Uses

Kansas highways cross expansive Piedmont-type clays, wind-blown loess in the northeast, riverine sands along the Kansas and Arkansas rivers, and the chalky, semi-arid High Plains in the west. Add freeze–thaw cycles, intense convective storms, flooding in lowlands, and heavy agricultural and freight traffic, and you get subgrades that can soften, pump fines, rut, and erode. Geotextiles are the quiet engineering layer that helps pavements, structures, and drainage systems keep working under those stresses.

The first role is separation and stabilization. On new lanes, shoulder widenings, and staged construction, a woven geotextile is placed between native soil and granular base or subbase. It stops fine soils—especially plastic clays and loess—from migrating up into the aggregate under traffic, spreads load, and preserves base thickness. Where subgrades are very soft or wet in floodplains or utility crossings, crews roll out fabric to create a working platform so trucks and pavers don’t punch through. On exceptionally weak ground, the geotextile is often paired with a geogrid to add stiffness and speed construction.

Because water drives many failures, filtration and drainage are constant priorities. Nonwoven geotextiles line edge-drain trenches, wrap perforated pipes, and separate drainage stone from surrounding soils behind retaining walls and abutments. The right apparent opening size and permittivity let water move while fines stay put, reducing clogged outlets, shoulder drop-offs, and wet spots that shorten pavement life. In cold regions, a nonwoven over open-graded aggregate also forms a capillary break, limiting upward moisture that fuels frost heave and base softening.

Where flow concentrates—culverts, storm outfalls, streambanks, and channel linings—geotextiles serve as riprap underlayment. A robust nonwoven filter goes on the prepared slope before armor rock. It prevents the underlying soil from piping through rock voids during high velocities and debris-laden floods, helps the riprap “lock in,” and protects embankments at bridge approaches and channel bends across the Flint Hills and along major river corridors. On long runs or fluctuating water levels, seams are overlapped generously or sewn and anchored to stay continuous under shifting hydraulics.

KDOT corridors include extensive mechanically stabilized earth (MSE) walls and grade separations. Here, geotextiles act as joint and face filters, tucked behind panel or block joints so backfill fines don’t migrate to the face while drainage continuity is preserved. The same concept applies at wingwalls, backwalls, and structural penetrations, where a filter layer protects weeps and outlets from silty inflow without trapping water.

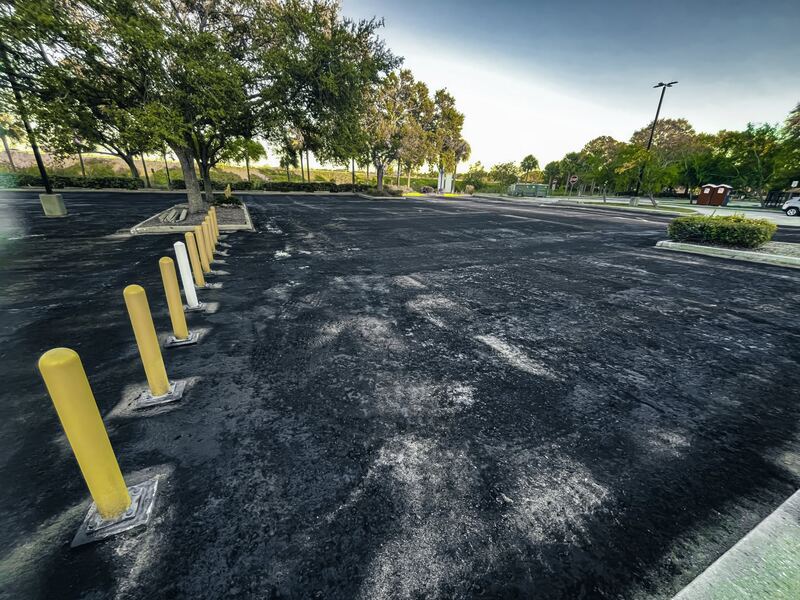

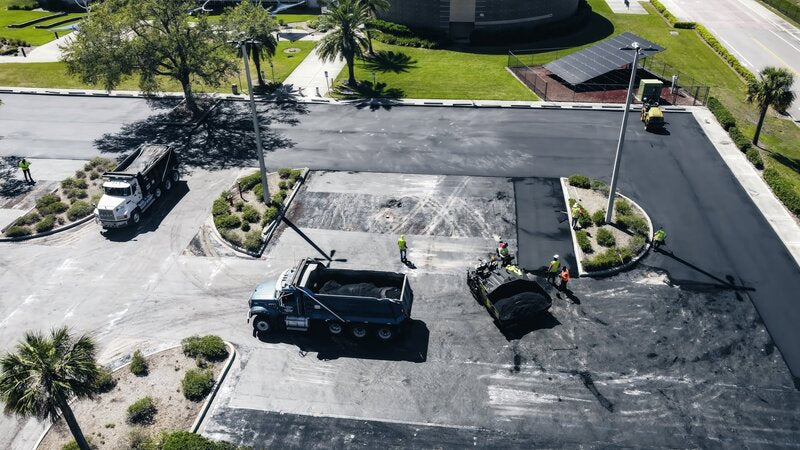

Kansas also makes strategic use of pavement interlayers. Asphalt-impregnated nonwoven geotextile beneath overlays improves waterproofing and slows reflective cracking—valuable where hot summers, wide day-night swings, and heavy axle loads accelerate pavement aging. On chip seals common to rural routes, paving fabrics limit water intrusion into the base and subgrade, extending service life with minimal added thickness.

For temporary erosion and sediment control, geotextiles appear in silt fence, inlet protection, curb socks, and ditch checks. They filter flow while trapping fines—critical for stormwater compliance on long medians, steep cuts, and urban work zones. At project entrances, stabilized construction exits typically include a nonwoven geotextile under coarse rock; the fabric spreads wheel loads and prevents stone from punching into wet soils, reducing track-out onto public roads.

Good field practice ties it together: prepare subgrades smooth, avoid wrinkles, overlap or sew seams as needed, anchor with pins or the first lift, and cover promptly. Selection is function-driven—woven for stabilization and tensile capacity; nonwoven for filtration, drainage, and protection—tuned to Kansas soils, hydraulics, and traffic demands.SourcesAsk ChatGPT
Finally, geotextiles provide liner protection in stormwater basins, lined ditches, salt-shed pads, and deicing-brine containment. Heavy nonwoven fabrics cushion geomembranes from angular aggregate and construction traffic, cutting puncture risk and extending system life.
