Miragrid 7XT Geogrid - 12' x 200' Roll - TenCate

$1,479.67


FREE SHIPPING
SKU MIRAFI-7XT-12X200

Miragrid 7XT Geogrid - 12' x 200' Roll - TenCate

Model: 7XT-12X200
Brand: TenCate

Size: 12' x 200'
Square Feet / Roll: 2,400
Weight: 195 lbs
Geogrid Specifications:  Download Miragrid 7XT Specification Sheet


Looking for a smaller roll size?
We offer retaining wall geogrid in both 4' and 6' widths in addition to 12'. View Selection >

View our Full Selection of Geogrid >

Do you need a written quote? Submit a quote request >

This fabric is produced in the state of Georgia, USA and can meet Build America / Buy America (BABA) requirements when requested. If ordering this fabric for a BABA project be sure to indicate that a BABA fabric is required in the “order message” field on the cart page.

NOTE: Mirafi branded products are ineligible for return or order cancellation once the order has been shipped. If you would like to purchase an equivalent fabric which is eligible to be returned with a standard restocking fee please give us a call at (800) 748-5647.


This Product is Stocked in the California and Georgia Distribution Centers Only.

FREE SHIPPING

 Require a written quote?
Request Online >

 Questions? Call (800) 748-5647

PRODUCT SUMMARY

  • High long-term design strengths (LTDS): Miragrid® geogrids have more than 220,000 hours of tension creep testing performed at an independent test laboratory.
  • Credible: Dependable long term strength assured.
  • Cost effective: Creep resistant polyester fibers provide higher allowable tensile strength, minimizing the required number of geogrid layers. Wide rolls significantly reducing placement time, lowering cost.
  • Light weight: Easy to handle and no sharp edges.
  • Flexible, tough: Minimizes movement of soil structure.
  • Strength: Miragrid® geogrids provide the widest strength range, and are the highest strength geogrid material in the market today.

TenCate Miragrid® XT uniaxial geogrids function for:
- Soil Reinforcement

YOUR TRUSTED
MIRAFI SUPPLIER

  • We are an authorized Mirafi / Tencate distributor.
  • We only sell genuine Mirafi geogrid. We never ship mislabeled overruns or "knock-offs".
  • You order Mirafi, we ship Mirafi. Even if a stock issue arises we never substitute for another brand without the customer's direct consent.
  • When you call, we answer. When you call Paramount Materials you get a live person quickly, ready to help with product or order questions. (M-F 5:00 am - 3:00 pm Pacific Time)

Fabric Shipping Time - Georgia Warehouse:

By default, Mirafi fabric orders ship from the Georgia warehouse where a full stock of the Mirafi fabric types are maintained. Most orders ship same day (M-F) if order is placed before 11:00 AM EST. Transit times displayed in the map are listed in business days, are approximate and are specific to the Mirafi fabric line. The day that the order is shipped is not counted as a transit day. Most Mirafi fabric rolls ship via LTL freight. For expedited shipping rates please call: (800) 748-5647

The transit times displayed on the map are for our free shipping option.

Fabric Shipping Time - Southern California Warehouse:

Note: By default, orders ship from the Georgia warehouse with the standard transit times shown above. If you would like your order to ship from the Southern California warehouse (Mira Loma) you must first fill out a stock check request. Orders can also be picked up at this warehouse location if preferred. Southern California warehouse orders must be placed over the phone.

Most Mirafi fabric California warehouse orders ship same day (M-F) if order is placed before 11:00 AM EST. Transit times displayed in the map are listed in business days, are approximate and are specific to the Mirafi fabric line. The day that the order is shipped is not counted as a transit day. Most Mirafi fabric rolls ship via LTL freight. For expedited shipping rates please call: (800) 748-5647

The transit times displayed on the map are for our free shipping option.

PRODUCT INFORMATION

TENCATE MIRAGRID® XT UNIAXIAL GEOGRIDS:

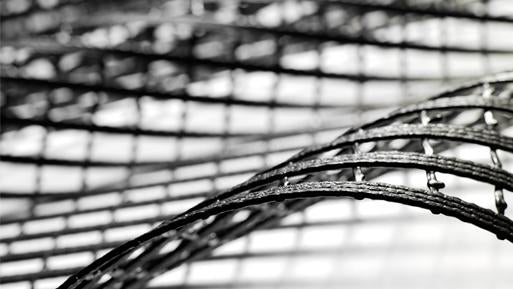

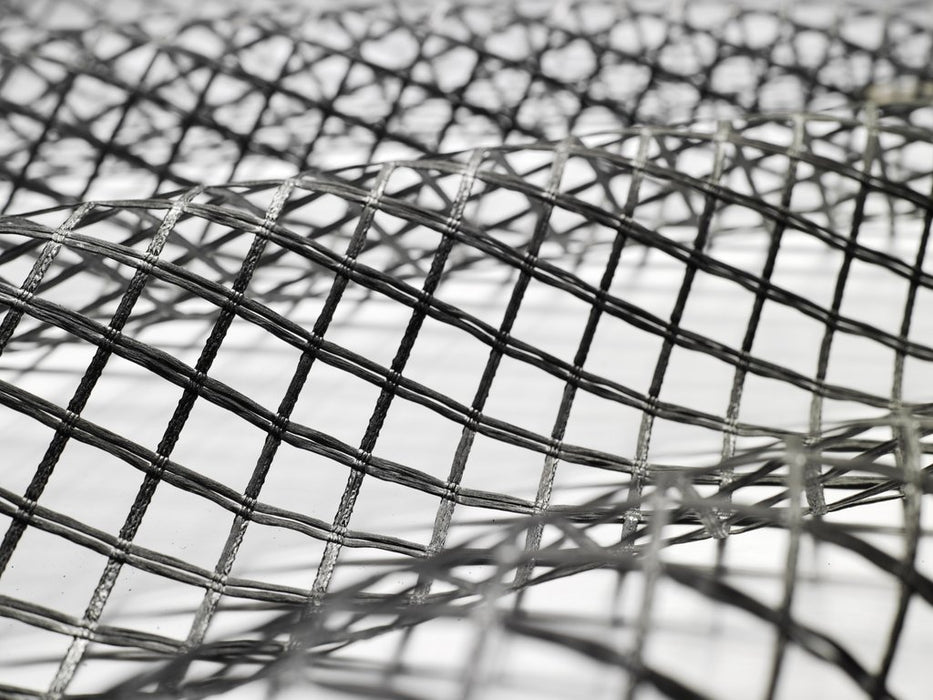

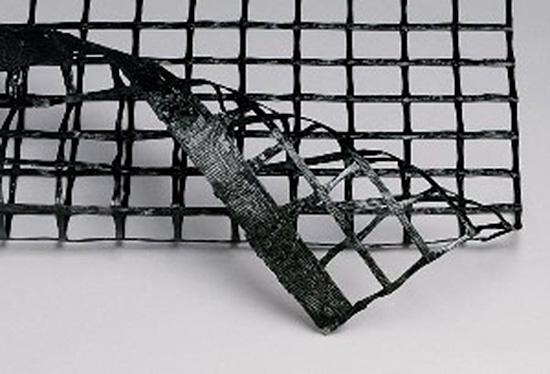

TenCate Miragrid® XT uniaxial geogrids are high performance woven polyester and polymer-coated geogrids used for soil reinforcement. TenCate Miragrid® XT uniaxial geogrids are used in Mechanically Stabilized Earth applications including internally reinforced walls, segmental retaining walls (SRW's), and steepend slopes. TenCate Miragrid® XT uniaxial geogrids provide high, long-term design strengths (LTDS) and excellent soil interaction. TenCate Miragrid® XT uniaxial geogrids are constructed of high tenacity, high molecular weight, woven polyester to deliver long-term performance.


The Difference TenCate Miragrid® XT uniaxial geogrids make:

- Flexible and durable
- Excellent creep resistance
- High long-term design strengths
- Lightweight and easily handled
- Cost effective
- Custom fabricated
- System Solutions:

Mechanically Stabilized Earth

- Steepened Slopes: Vegetated and Wrapped Faced
- Walls: Permanent and Temporary
- Segmented Retaining Walls
- Void Spanning
- Veneer Reinforcement
- Soil Reinforcement
- Landfills

Downloads:

 Product Description Sheet (MARV)

2XT Product Description Sheet

2XT Tri-fold

Engineered Structures Brochure

Mechanically Stabilized Earth Line Card

NTPEP Report REGEO-2011-01-001

NTPEP Report REGEO-2015-01-002



Technical Data Sheet PDF (MARV):



Case Studies:

Miragrid 7XT

Rock County, located in southern Minnesota, closed the very old timber bridge that carried County Road 55 over a regional railroad in 1993. Their plan was to replace the bridge structure until they realized the construction technique and the materials for building a single-span bridge would be very expensive. They needed the bridge to be built in a timely manner and as inexpensively as possible.

The Design

In order to meet their limited budget for constructing abutments, the Federal Highway Administration (FHWA) chose the Geosynthetic Reinforced SoilIntegrated Bridge System (GRS-IBS). The system was at the center of FHWA’s drive for innovative bridge construction for this kind of abutment. The design was borrowed from some ancient structures that used closely spaced organic materials to reinforce the soil. The standards are the same for this modern version by using angular, crushed gravel with high-strength geotextile or geogrid in continual layers. The interaction of these components would stabilize the structure internally. TenCate  Miragrid® 7XT geogrid and Mirafi®HP570 were the chosen geotextiles for the project.  Even though there are over 100   GRS-IBS bridges up and working in this country, this is the first in the state of Minnesota. It is also considered one of the tallest bridges coming in at 24 feet. The technique for the construction did not require a deep foundation design and could be completed in a matter of weeks. It also used basic earthwork methods with minimal environmental impact.

Construction

TenCate Mirafi® geosynthetics works perfectly for two of the components in the design of the bridge system.   The Reinforced Soil Foundationwas constructed using Mirafi®HP570 to create the needed confinement and reinforcement for the base support for this structure. It consists of select gravel compacted and encapsulated in the Mirafi®HP570 geotextile fabric to function as a necessary foundation for the abutment.

From there, the abutment was built by placing alternating layers of select gravel and geosynthetic reinforcement in 4-inch to 8-inch lifts. The project engineer chose  Miragrid® 7XT for the reinforcement between the compacted fill material due to its strength and excellent construction properties.

Miragrid® 7XT was placed horizontally at 8-inches between the concrete masonry facing units and 4-inches near the top to reinforce the bearing bed. The bearing bed supports the precast concrete bridge beams. Construction was actually quite easy using TenCate materials as well as the simple installation procedures which improved worker safety and a reduction in time to complete the project.

Performance

The bridge is now up and running and the performance is excellent. The bridge has been monitored from the very beginning of construction and there have been no issues. On top of the county saving on construction costs, there have been absolutely no maintenance costs.
