AREMA Railroad Geotextiles

Solmax AREMA Standard Specification Product Chart (click image to expand)

AREMA - Geotextile Uses

AREMA, the American Railway Engineering and Maintenance-of-Way Association, is the primary authority on technical standards for railway track infrastructure in North America. Within its Manual for Railway Engineering, AREMA provides detailed guidance on the use of geotextiles—synthetic, permeable fabrics that are designed to interact with soil, water, and aggregate to improve the performance and longevity of railway trackbeds. Geotextiles have become indispensable in modern rail construction because they address fundamental subgrade and drainage challenges that can otherwise compromise track geometry and safety.

The central purpose of geotextiles in railway applications is to maintain the integrity of the layered structure beneath the tracks. In traditional trackbeds, coarse ballast rests on finer sub-ballast and natural subgrade soils. Without a protective layer, the pumping action of trains can force fine soil particles upward into the ballast and wash ballast fines downward into the soil, leading to fouling, poor drainage, and uneven settlement. By serving as a permeable barrier, geotextiles prevent this intermixing while still allowing water to flow vertically through the layers. This separation function preserves the load-bearing qualities of the ballast and significantly reduces the need for frequent maintenance interventions.

Another critical role of geotextiles, emphasized by AREMA, is filtration. In wet or flood-prone conditions, uncontrolled migration of soil fines into drainage layers can block water pathways and increase pore-water pressures. Properly specified geotextiles allow water to pass through while holding back the finer soil particles, thus maintaining efficient drainage over the life of the trackbed. Where subgrade soils are weak or compressible, the fabric contributes to stabilization by distributing loads more evenly and limiting differential settlement, improving track performance under the heavy axle loads typical of freight and high-speed passenger rail.

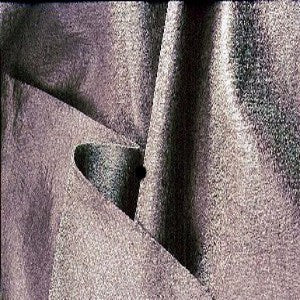

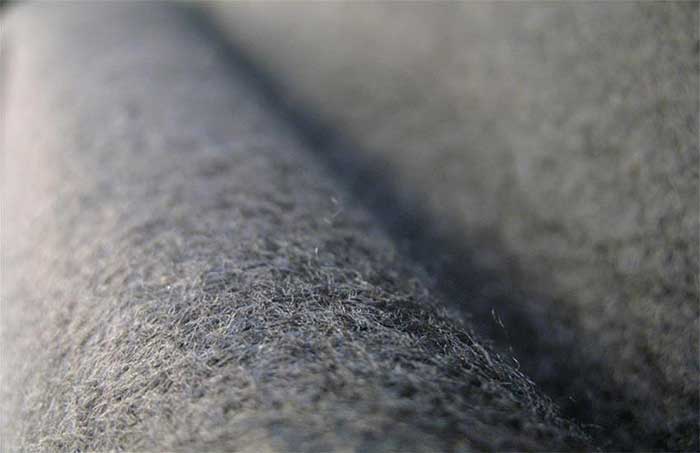

In practice, most AREMA-specified geotextiles for railway work are made from non-woven, needle-punched polypropylene fabrics because of their high permeability and resistance to clogging. Where added tensile strength is necessary, especially in reinforcement or stabilization applications, woven fabrics of polypropylene or polyester are used. Selecting the right fabric type depends on the site’s soil composition, expected train loads, and hydrological conditions. Designers also consider how the material will be installed, as improper placement can reduce its effectiveness and lead to premature track deterioration.
AREMA’s guidelines focus on performance properties that ensure geotextiles will survive installation and maintain their functions in demanding field conditions. The standards reference attributes such as tensile strength to resist stretching, puncture and tear resistance to withstand the stresses of ballast and construction equipment, and appropriate opening sizes to achieve the right balance between soil retention and permeability. Other considerations include hydraulic properties like permittivity and transmissivity, which govern vertical and lateral water flow, along with ultraviolet and chemical resistance to guard against long-term degradation in exposed or contaminated environments. These technical criteria are typically measured using standardized ASTM and AASHTO test methods, creating a consistent framework for material selection across different projects and manufacturers.

These geotextiles are deployed in many parts of railway infrastructure. Beneath the ballast they maintain separation and improve track geometry over time; in drainage trenches and culverts they act as filters to prevent soil migration and blockage; in embankments, bridge approaches, and slopes they protect against erosion by holding soil in place while allowing water to escape. By addressing these critical substructure issues, AREMA geotextiles extend the service life of the track, reduce the frequency and cost of maintenance, and enhance the safety and reliability of rail operations.

In conclusion, AREMA’s inclusion of geotextiles in its engineering manual reflects the vital role these materials play in modern railway construction and maintenance. They are not simply optional accessories but core structural components that improve performance through separation, filtration, stabilization, and drainage. By defining standardized performance criteria and installation guidelines, AREMA ensures that geotextiles deliver consistent, durable, and cost-effective solutions across diverse rail environments, from mainline freight corridors to passenger routes and yard facilities. Their adoption has transformed how engineers design and maintain trackbeds, allowing rail networks to meet the demands of heavier loads, higher speeds, and longer service life with reduced environmental impact and lower life-cycle costs.
