4 inch green slope stabilization grid SlopeGrid

Slope Stabilization Grid - 4" - SlopeGrid

Name: Slope Stabilization Grid - 4" - SlopeGrid
Brand: Paramount Materials
SKU: SLP-4
Price: 372.2 USD
Availability: InStock

$372.20

SKU SLP-4

Quantity

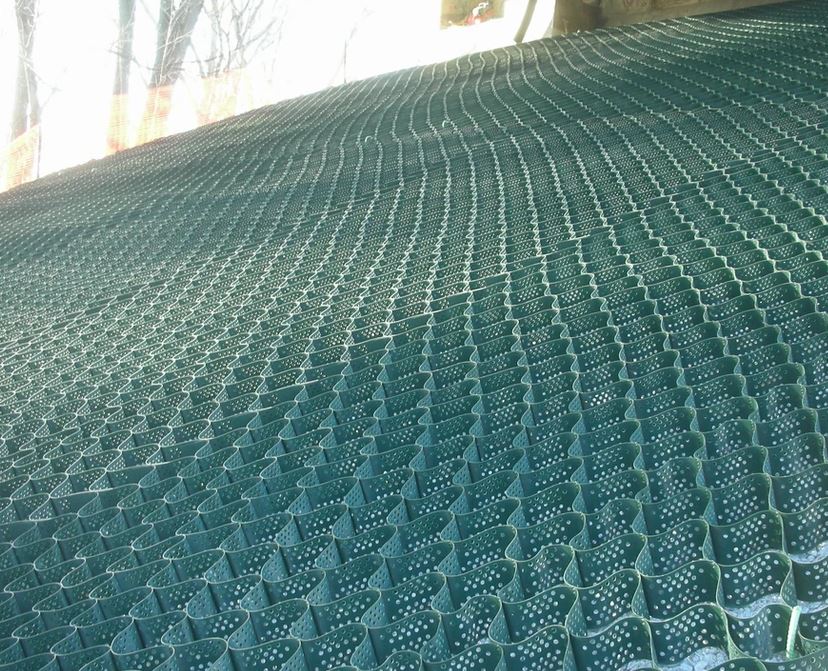

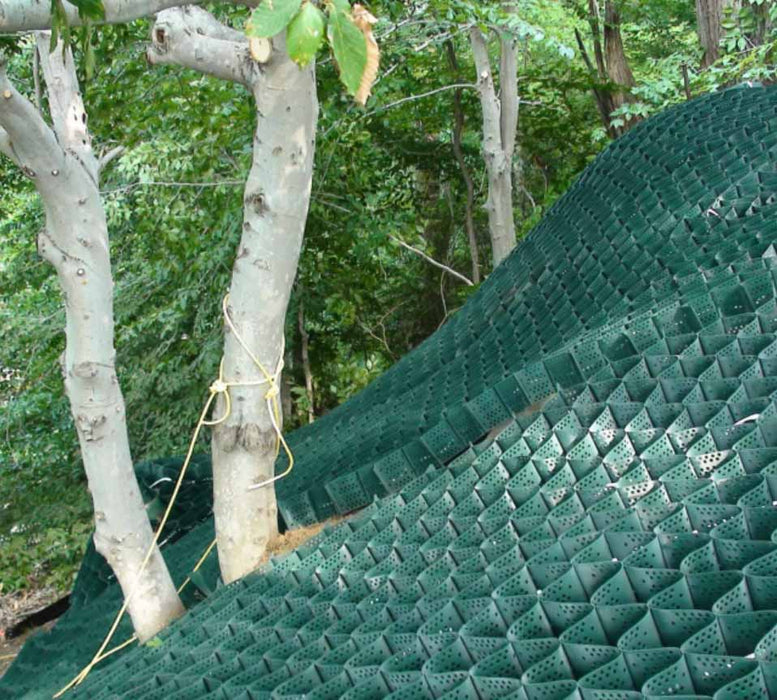

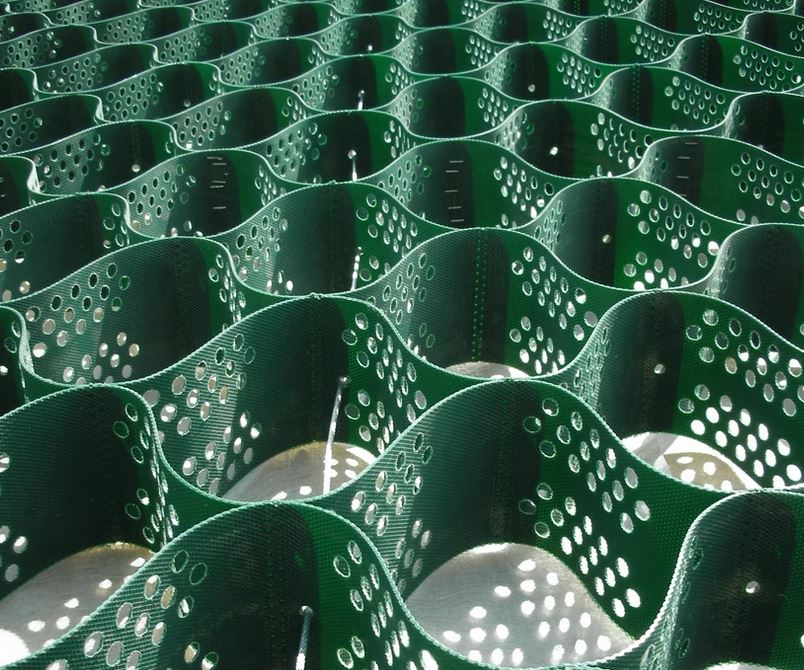

SlopeGrid provides superior erosion control protection. It is an economical long-term solution consisting of a large blanket of 3-D connected cells which fortifies the earth to prevent erosion, soil migration, and damaging shifting forces cause by water and wind.

Cell Depth: 4"

Unit Dimensions: 8' x 29' (232 SF)

FREE SHIPPING

***For slopes over 45 degrees, please call for a custom quote.***

Product Specifics

Model: SlopeGrid 4"
Cell Depth: 4"
Dimensions: 8' x 29'
Weight: 42 lbs
Square Feet / Grid: 232
Materials: Polymer, Virgin HDPE

Free Shipping
Need a Written Quote?
Request Online >
Volume Pricing
Available orders over $5,000
Questions?
Call (800) 748-5647

SlopeGrid Highlights

Eco-Friendly
Inexpensive
Permanent Solution
Low Maintenance

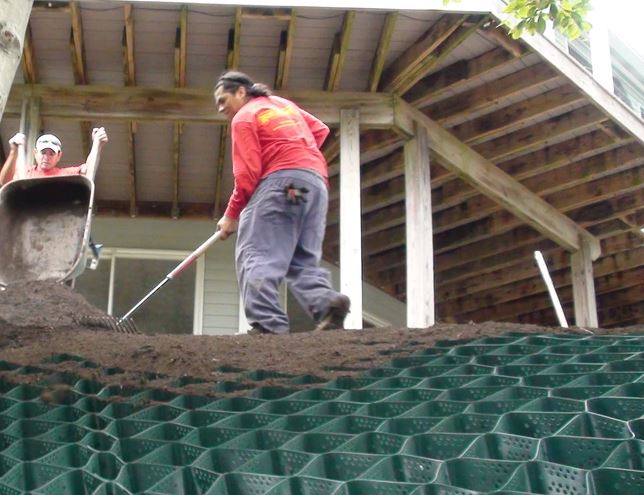

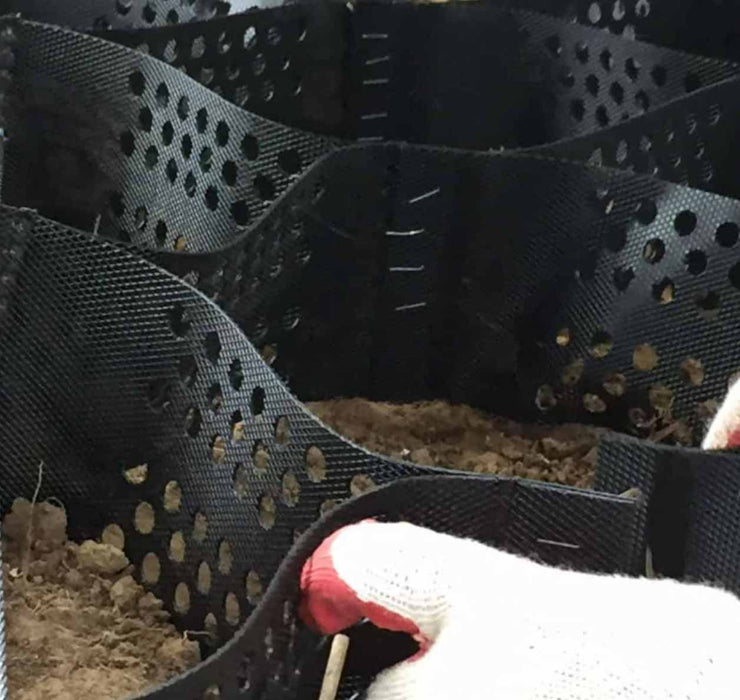

Cells can be filled with soil and planted with vegetation or filled with aggregates
Easier to install than a retaining wall

Applications

Embankment Restoration
Slopes
Green Roofs
Channels

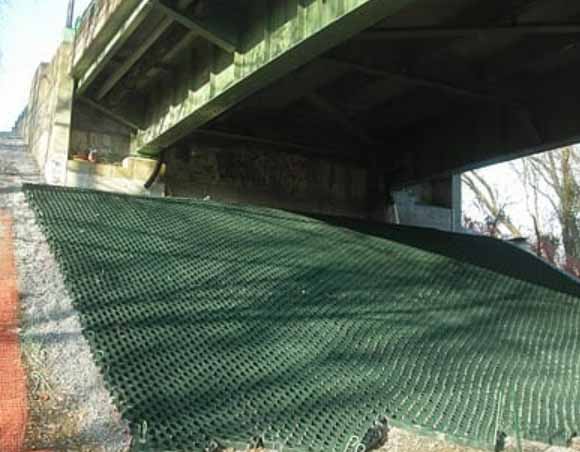

Overpasses
Swales
Roadside Embankment Reinforcement

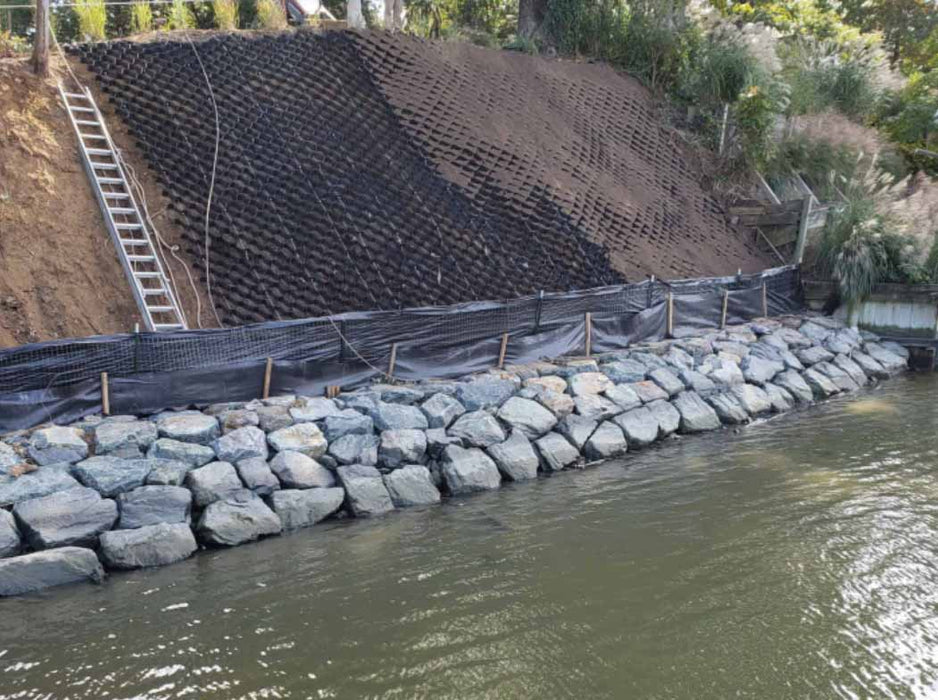

Ports & Marinas

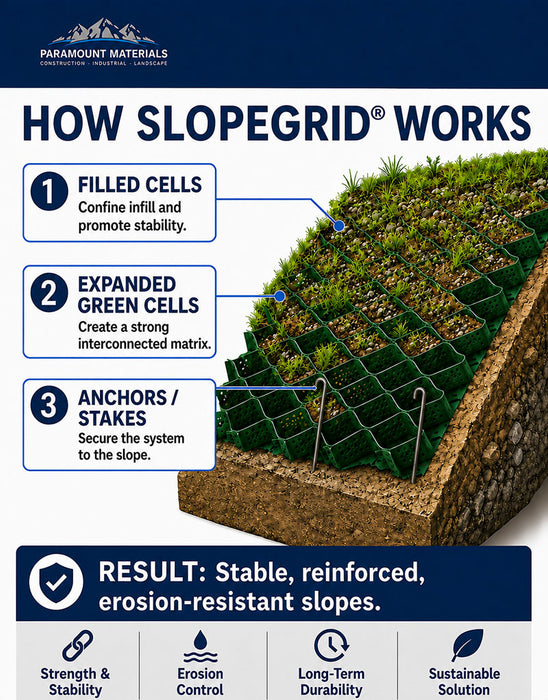

Residential slope stabilization is a concern for many homeowners and having the right erosion control product can be crucial in preventing hillside erosion and soil loss. Slope Grid geocells are perfectly designed to retain embankment soil and promote the growth of natural vegetation. Here's more about how Slope Grid works.

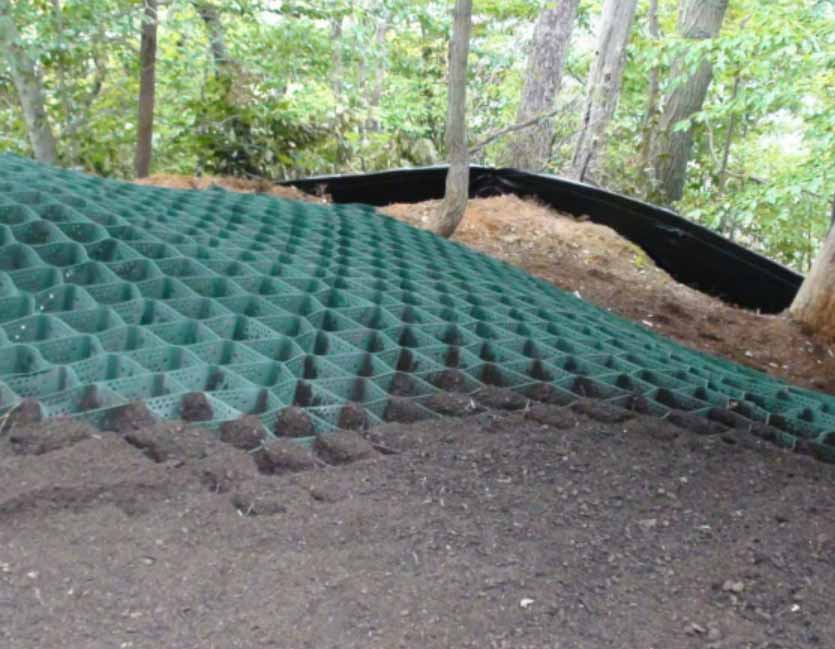

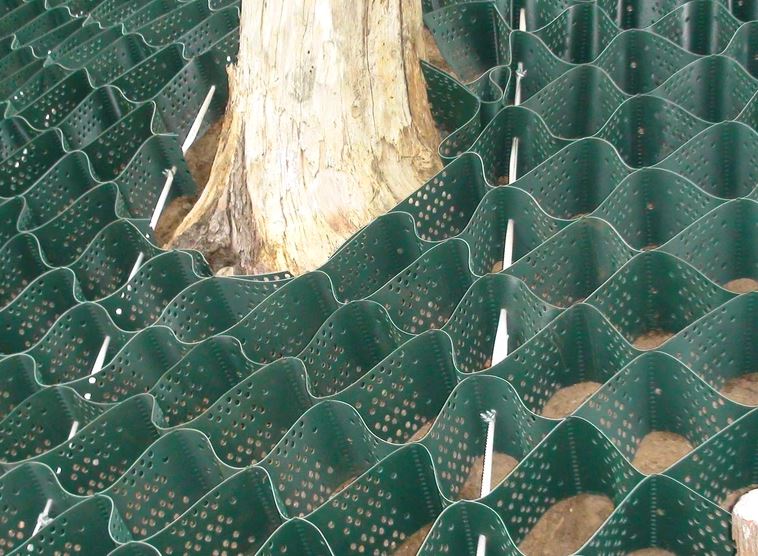

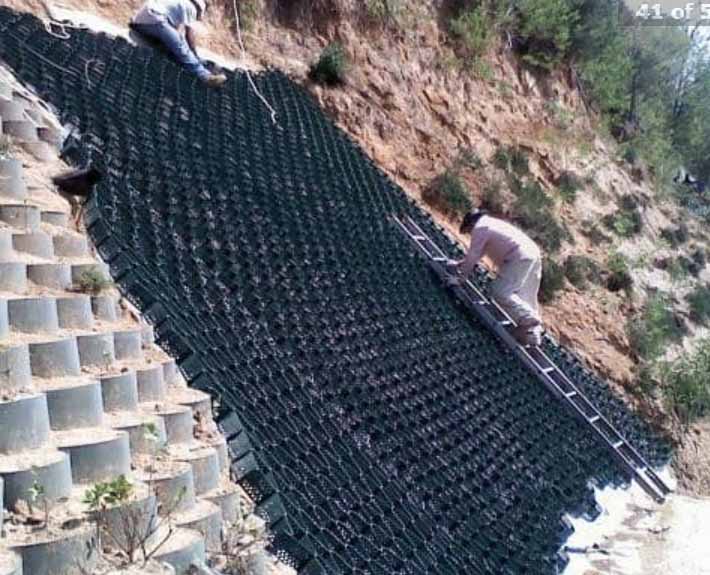

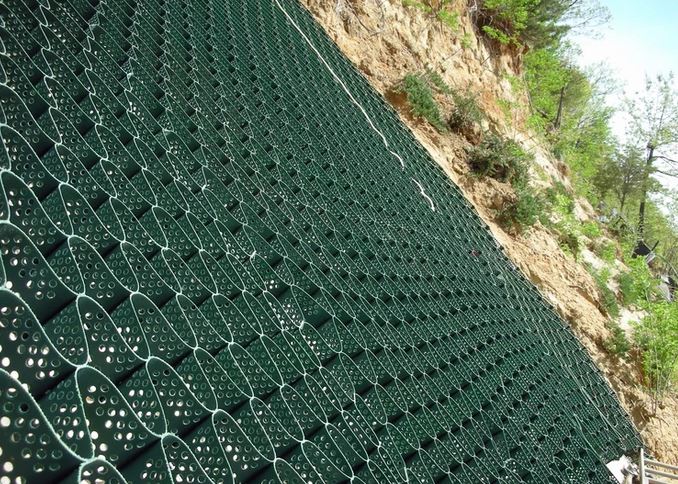

Slope Grid is an anchored geocell designed to keep earth and soil from eroding on slopes and is ideal for landscapes where the angle is greater than 1:2 slope, or 22.5 degrees. Slope Grid has a unique Earth anchoring system to stabilize the hillside and prevent erosion from high wind, rain, and water runoff.

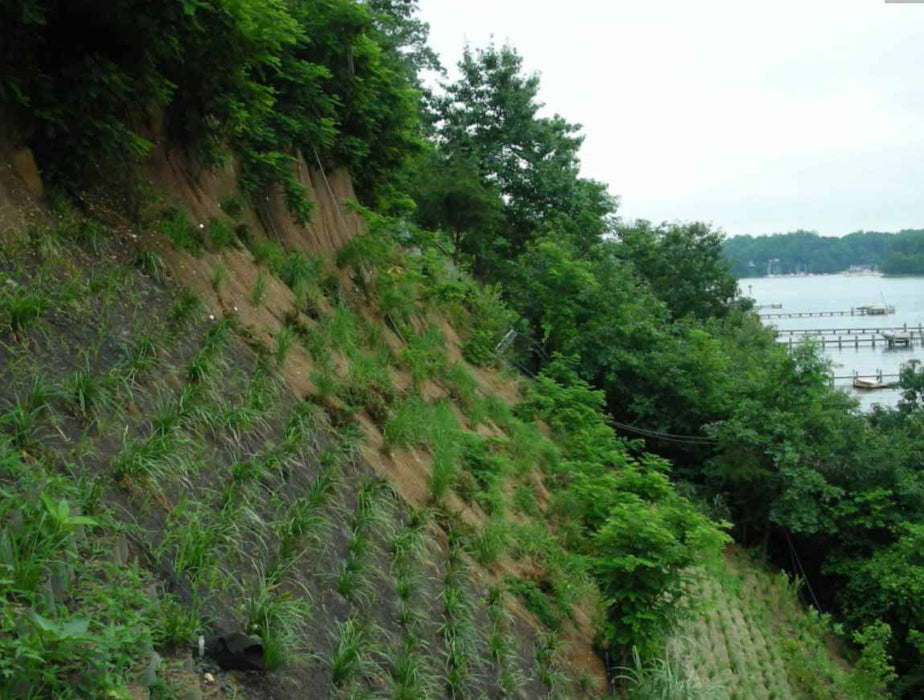

The system works best when combined with native vegetation plantings to further stabilize and fortify the organic root network in the underlying soil and enhance the beauty of the surrounding landscape.

Slope Grid Driveway Customer Story

One of our customers Mr. Edwards had a problem with his driveway constantly washing out. The driveway is up in the mountains where it's rocky and hilly and with each hard rain, all the money he put on his gravel driveway kept washing out into the county street below. Besides the loss of material, the county gave Mr. Edwards a fine for littering rock over the road. Mr. Erwin needed to come up with a solution and so he found us and the Slope grid product. Working with him and his contractor the solution was easy to implement using the Slope Grid product.

The contractor regraded and dug a swale trench on the side of his drive. A swale is a valley where water can travel

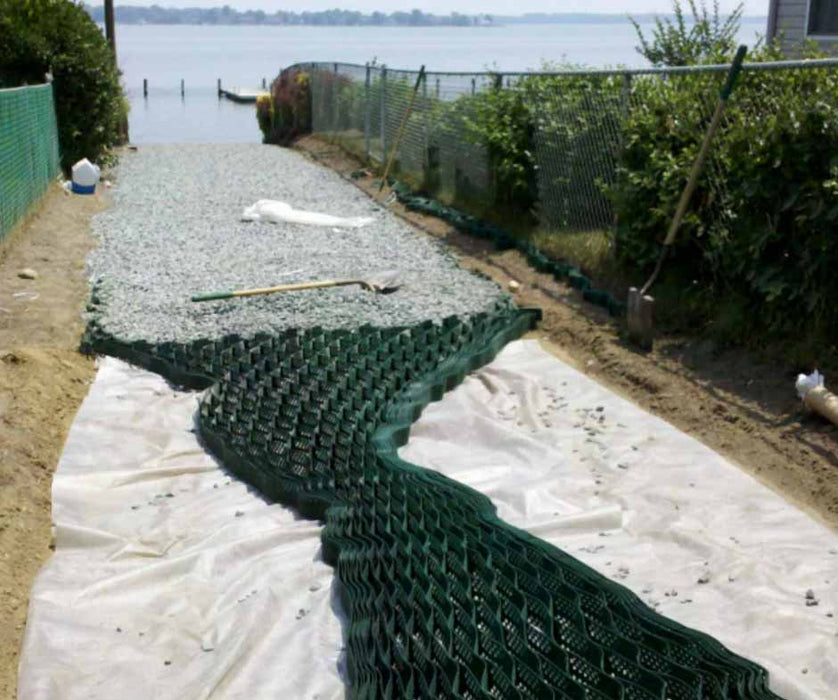

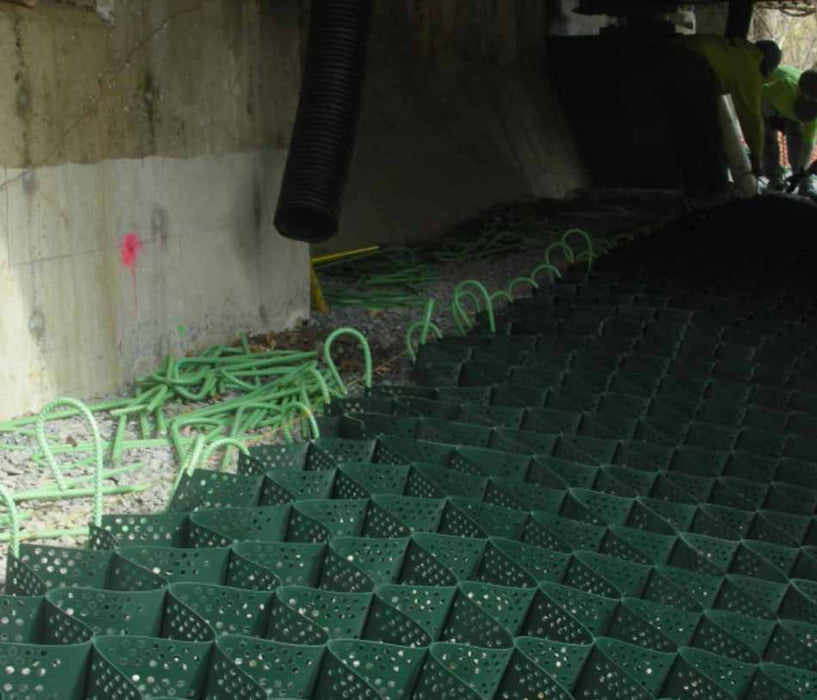

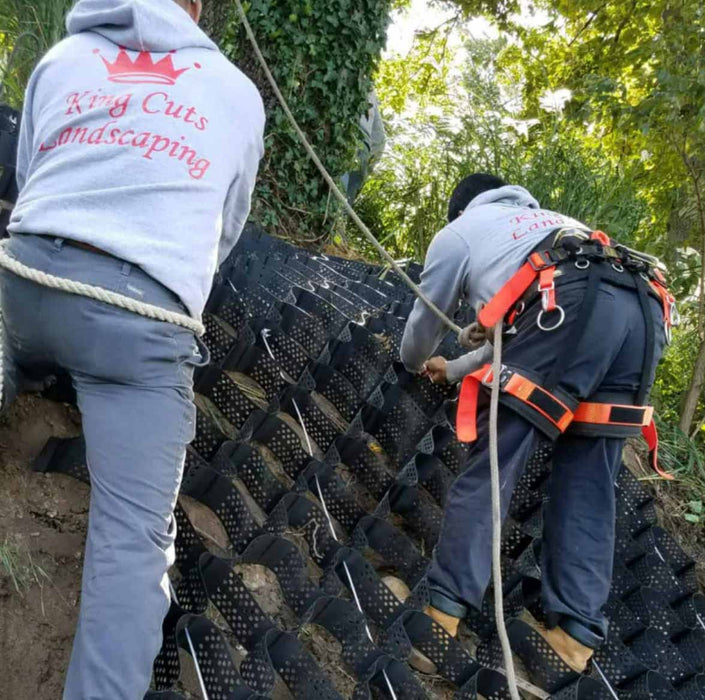

now that the driveway is graded the driveway and the swale is dug the water can be directed towards the hill to channel it to the Swale. To line the swale and bring stability back to the road the slope Grid was expanded and placed into the swale and onto the edge of the driveway, tying the swale and sloped road together. After the geocell is placed then J-hook anchors are placed approximately every 3 feet down the side of the grid to attach it to the hillside of the swale.

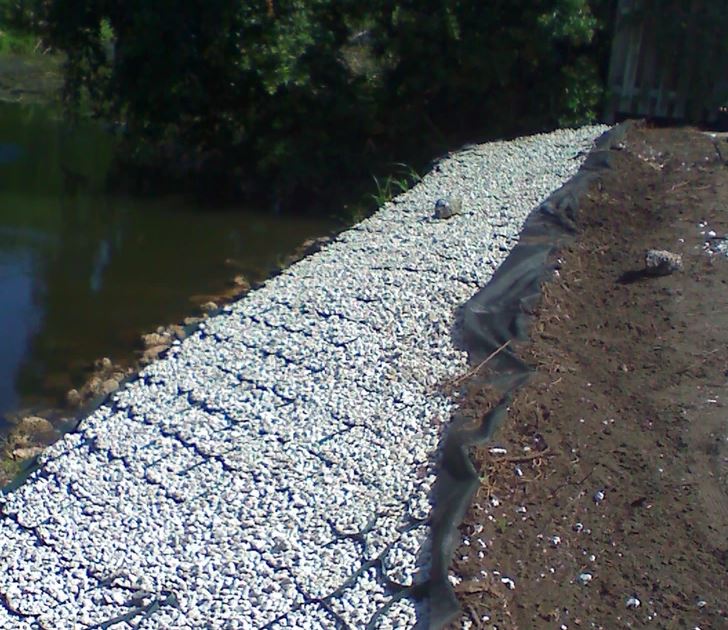

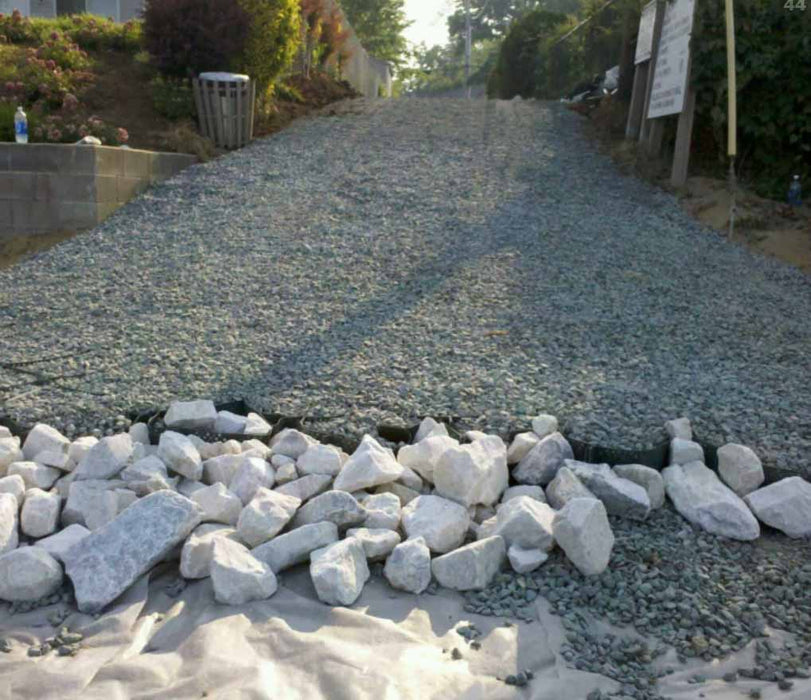

This is followed by placing some crushed stone is placed on the driveway and a couple of feet into the slope grid that is located in the swale. The purpose of only filling a portion of the grid with crusher run is that it will tie the swale and driveway together. Once this is done you can use a machine to fill in the rest of the grid with a larger stone such as the number 2 size aggregate. The larger stone will work to slow the water volume down and the slope grid will keep everything sliding downhill.

for full more info on how to install Slope Grid visit the Cell-Tek site for further CAD diagrams and a detailed installation guide.

With the new swale constructed and stone securely in place, Mr. Edwin can breathe a sigh of relief that his road will no longer wash out after each heavy rain. standard road maintenance may still be required for fixing potholed, however, no losing gravel and has not had a single issue with losing gravel since this installation.

Testimony from Cell-Tek Slope Grid customer.

SlopeGrid Units Per Pallet:
4" SlopeGrid = 18
6" SlopeGrid = 12

PRODUCT INFORMATION DOWNLOADS

Product Brochures

Slope Brochure
Green Roof Brochure

Installation Guides and Tips

Installation Guide
Cell Direction
J Hook Placement
Product Info and Install Tips

SlopeGrid CADS

J-Hook

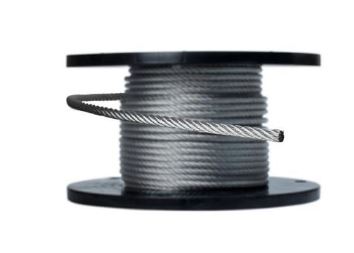

Vegetated Slope with Cabling
Slope Protection - Concrete Infill

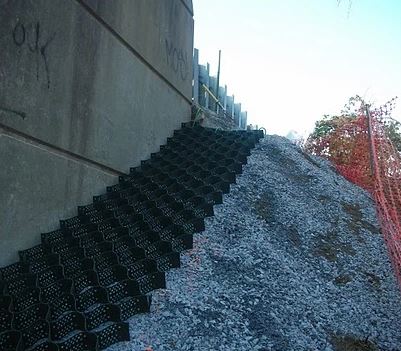

Aggregate Surface Layer
Vegetated Green Surface

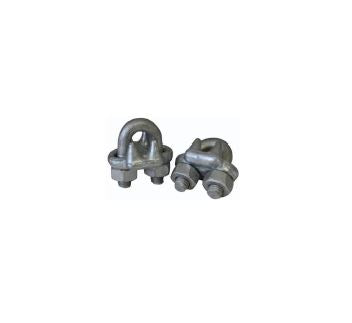

Anchoring Options

SDS and CSI

Data Sheet
CSI Sheet

What Accessories Are Needed?

For Slopes UNDER 45 Degrees:

J-Hooks

For Slopes OVER 45 Degrees: Please call (800) 748-5647 for custom quote.

Installation Videos

Shipping

All SlopeGrid Products Ship for Free (standard ground, see map)
Expedited shipping only available on orders over $2,000
Call: (800) 748-5647 for pricing and ship times

Shipping estimates shown on the map pertain to this specific product only. SlopeGrid orders typically ship same day if the order is placed before 12:00 noon EST. Transit times displayed in the map are listed in business days, and are approximate. The day that the order is shipped is not counted as a transit day.
