Horse Paddock Footing Grid - Paddock Slab

The Paddock Slab grid is an ideal solution to muddy paddocks and provides a stable surface which can easily support the weight of horses, other animals and vehicles. Designed to be fully permeable, the paddock slab will help to reduce mud and is designed for daily use.


Model:
PS-50-40-4
Brand: Hahn Plastics

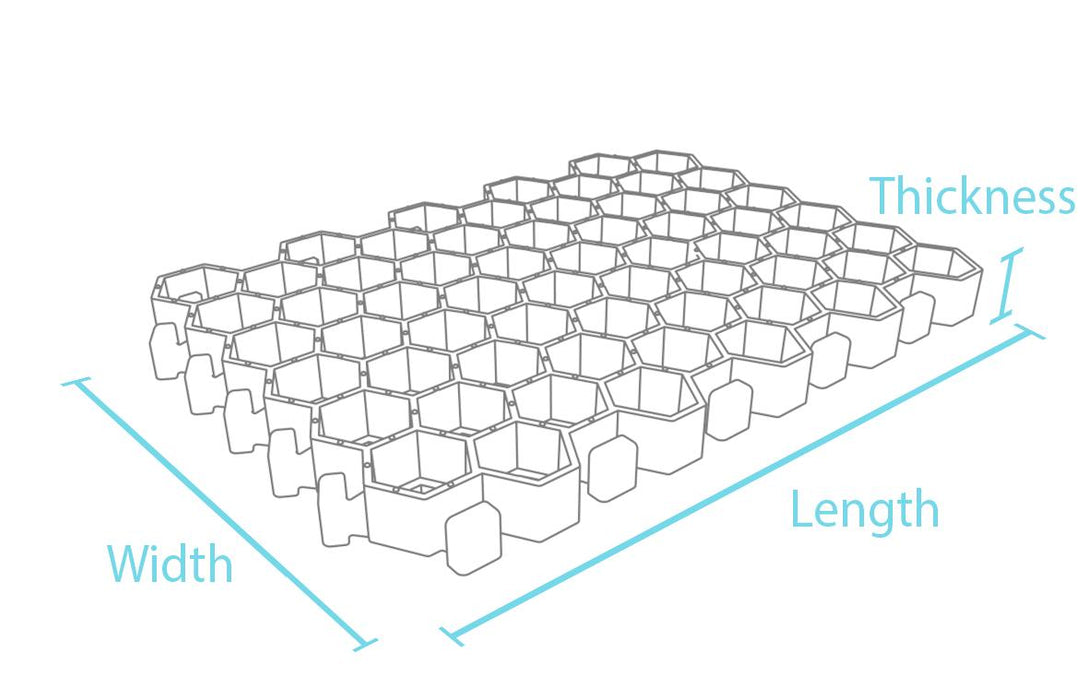

Size: 19.69" x 15.75" x 1.58"
Square Feet / Grid: 2.15
Grid Depth: 1.58"
Product Specifications:  Download Paddock Slab Specification Sheet / Brochure >

Minimum Order Quantity:
 200 units, 430 sq. ft.



FREE SHIPPING

Do you need a written quote? Submit a quote request >

Volume Pricing Available on Orders Over $10,000



Say Goodbye to Mud and Muck

Stop wasting time and money by scattering shavings on muddy paddocks as a short-term solution. Mud and moisture are problems for almost every horse owner. It has been well documented that wet feet is a leading cause of ailments such as thrush, abscesses, scratches and white line disease, amongst others.

By using PADDOCK SLABS in muddy areas, you’ll be building some solid footing for your horse. Paddock slabs are low maintenance, made from 100% recycled plastic, so they can’t rot, and come with a 20 year product guarantee.


Click to Enlarge Image Above


Advantages:

  • Ideal aperture size for horses
  • Excellent water permeation through the surface
  • Durable, non-rotting and weather resistant
  • High stability due to strong web
  • Frost and UV-resistant
  • Low maintenance and cost effective throughout the product life
  • The lightweight interlocking design enables ease and speed of installation
  • Paddock Slab reduces the carbon footprint of a project and it is completely recyclable
  • Ideal to prevent erosion in high activity areas
  • Drivable surface



Laying Instructions:

For areas under heavy usage (riding arena, lunging ring) we recommend an installation in layers consisting of a base layer, an equalising layer, the paddock slab with filling material as separating layer and a top layer or footing.

A permeable layer (approx. 20–25 cm (7.87–9.84”)) of crushed rock, or gravel 2 is applied to soil with good bearing capacity (1) and compacted afterwards. A (2–4) cm (0.79–1.57”) equalising layer of grit (3) is subsequently applied and leveled.

The slab (5) serves as separating layer. It is filled with grit, sand or gravel and prevents the mixing of base and footing layer. Separation can be improved by placing a permeable geotextile (4) under the slab.

Finally, the footing (6) is applied. It may consist of sand, wood chips, fabric based or similar material.

For use in less stressed areas (paddocks, feedlots, access paths) the sub-base can be reduced according to the expected strain or the slab can even be placed directly on natural ground.

It cannot be guaranteed though that the slab will not sink into the ground.




Paddock Slab Shipping Time:


Most Paddock Slab orders ship next day (M-F) if order is placed before 11:00 AM EST. Transit times displayed in the map are listed in business days, are approximate and are specific to the Paddock Slab product. The day that the order is shipped is not counted as a transit day. Paddock slab orders ship via LTL freight.

The transit times displayed on the map are for our free shipping option.
